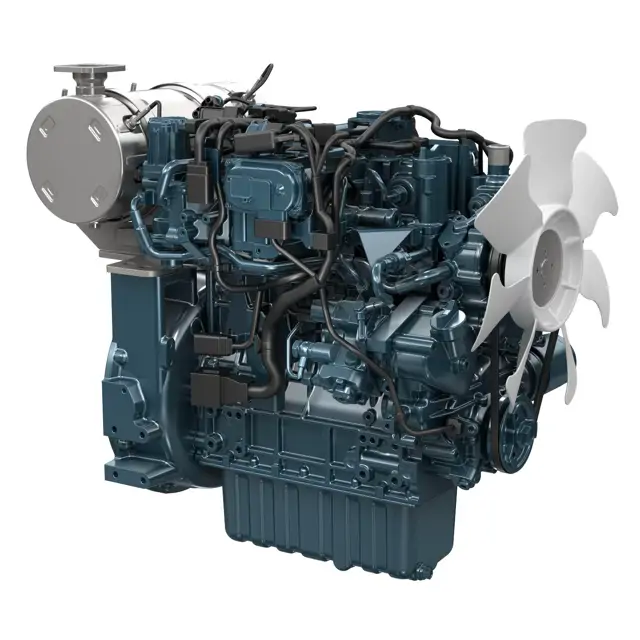

Kubota Diesel Engine V1505-CR-TE5

Water Separator Filter Replacement

Remove the old water separator filter with a filter wrench

Apply a film of oil to the gasket for the new water separator filter

Screw in the water separator filter by hand

Was the water separator filter replaced successfully?

Is the new water separator filter properly installed without leaks?

Notes or observations during the replacement process

Consult your local KUBOTA Dealer for this service if needed

Ensure personal safety measures are in place to avoid injury.

Radiator Hoses and Clamp Bands Inspection

Check the condition of the radiator hoses and clamp bands for the following issues

Are all radiator hoses and clamp bands in good condition?

Tighten hose clamps if they are loose or if water leaks are detected.

Replace hoses and tighten hose clamps if hoses are swollen, hardened, or cracked.

Open the evacuator valve under ordinary conditions

Was the evacuator valve opened daily in a dusty environment?

Ensure no oil is applied to the dry type air cleaner element

Confirm removal of large particles of dust and dirt

Ensure the engine has been idling unloaded for 5 minutes before stopping.

Verify the engine and radiator have cooled for at least 30 minutes before proceeding.

Ensure the radiator cap is not removed while coolant is hot.

Remove the radiator cap after the engine has completely cooled and check coolant reaches the supply port.

Check the coolant level in the recovery tank is between 'FULL' and 'LOW' marks.

Add water only up to the full level if coolant level drops due to evaporation.

Stop the engine before draining engine oil.

Place a container underneath the engine to catch the draining oil.

Ensure the engine has cooled down sufficiently before draining oil.

Remove the drain plug at the bottom of the engine to drain old oil.

Remove the filler plug to facilitate complete oil drainage.

Add new engine oil up to the upper limit of the oil level gauge.
