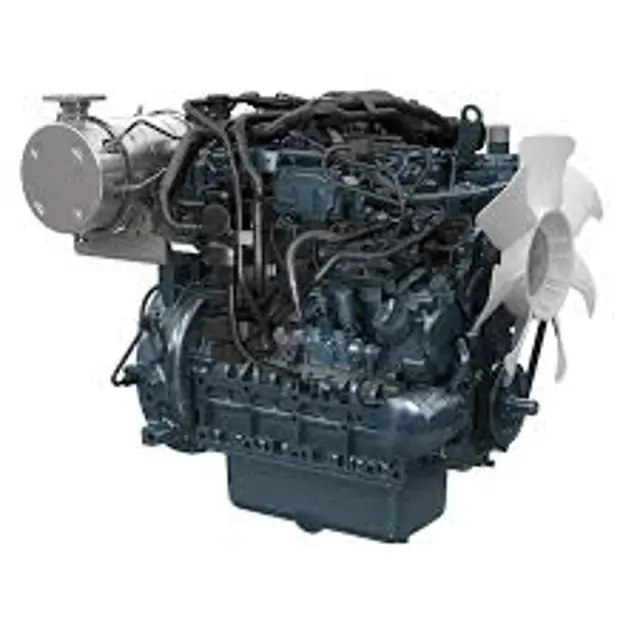

Kubota Diesel Engine V2403-CR-TE5

Stop the engine and remove the key

Reinstall the detached safety shield after maintenance or checking

Apply moderate thumb pressure to belt between the pulleys

Is the belt tension within acceptable limits?

Measure the deflection of the belt under a load of 10 kgf (22.1 lbs)

Is the deflection between 7 to 9 mm (0.28 to 0.35 in.)?

Stop the engine and remove the key

Reinstall the detached safety shield after maintenance or checking

Apply moderate thumb pressure to belt between the pulleys

Is the belt tension within acceptable limits (7 to 9 mm deflection under 10 kgf load)?

Loosen the alternator mounting bolts if tension is incorrect

Use a lever to adjust the alternator position until proper belt tension is achieved

Stop the engine before checking or replacing the fuel pipes.

Ensure no broken fuel pipes are present to prevent fires.

Fuel Pipes and Clamp Bands Inspection

Check the condition of the following components

Apply oil to the screw of the band and tighten it securely if loose.

Checking of Radiator Hoses and Clamp Bands

Ensure personal safety measures are in place to avoid injury.

Be aware of the risk of overheating and severe burns from damaged hoses or coolant leaks.

Inspection of Radiator Hoses and Clamp Bands

Check the condition of the radiator hoses for the following issues

Are the radiator hoses properly fixed?

Are there any water leaks from the hose clamps?

Install shields and safeguards attached to the engine before operating.

Stop the engine at a flat and wide space before checking.

Ensure dust or fuel is away from the battery, wiring, muffler, and engine to prevent a fire.

Check and clear any potential fire hazards before operating.

Check parts which had trouble in previous operation

Walk around the machine and check for the following
