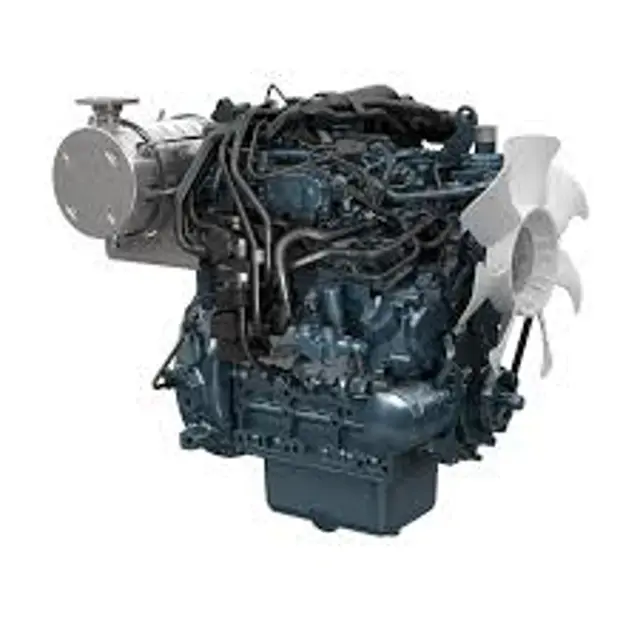

Kubota Diesel Engine D1803-CR-TE5

Ensure no gasoline or alcohol is mixed with diesel fuel.

Ensure the engine is stopped before refueling.

Ensure no smoking around the battery or during refueling.

Check fuel systems in a well-ventilated and wide area.

Check the fuel level gauge to ensure it is above the lower limit.

Is the fuel level above the lower limit?

Is the water separator indicator light on?

Refer to the operator's manual for more details

Drain water from the switch assembly

Is the engine restarted successfully?

Set the water separator handle to the 'OFF' position

Loosen the bottom cock to let the foreign substances out of the separator

Set the water separator handle to the 'OFF' position

Loosen and remove the cup proper

Clean the inside of the cup proper with light oil

Are all lock bolts and nuts tight enough?

Water Separator Filter Replacement

Replace the water separator filter with a new one every 500 hours or 1 year.

Remove the old water separator filter with a filter wrench.

Apply a film of oil to the gasket for the new water separator filter.

Screw in the water separator filter by hand.

Consult your local KUBOTA Dealer for this service.
