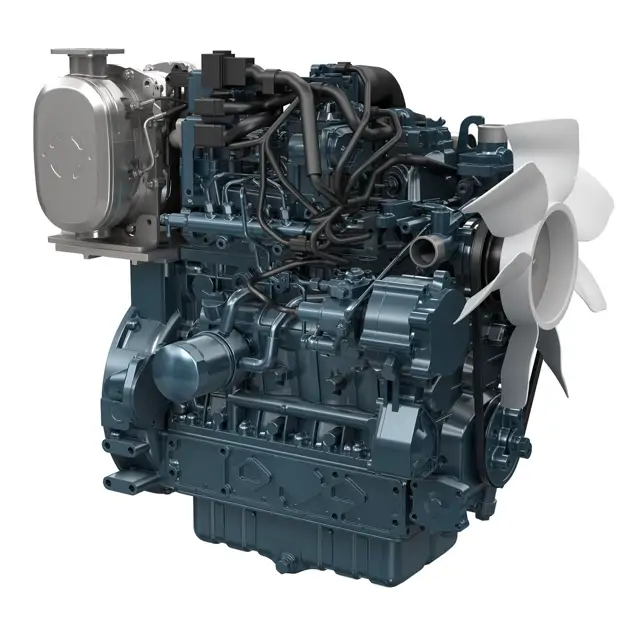

Kubota Diesel Engine V3800-CR-TE5
Need answers fast?
Explore the manual using AI.
Turn manuals into instant answers
with your AI-powered assistantTurn manuals into instant answers
with your AI-powered assistant
Manual for Kubota Diesel Engine V3800-CR-TE5
Complete asset maintenance, one click away
Get instant access to all the maintenance information you need. Empower technicians to perform preventive maintenance with asset packages, ready to use right out of the box.
Documents & Manuals
Find all the essential guides in one place.
Tensioning Guide- Belt-diagram
- C-120 pulleys
+ 13 more
Work Order Templates
Pre-built workflows to keep your asset running smoothly.
- Daily Electrical System Inspection
- Replace Roller and Pulley
- Install Engine B-120
+ 29 more
Procedures
Integrate maintenance plans directly into your work orders.
- Motion Industries
- Applied Industrial Technologies
- Electrical Brothers
+ 5 more
Parts
Access the parts list for your equipment in MaintainX.
- Drive Motor
- B2 Rollers
- Tensioning System
+ 40 more
Kubota Diesel Engine V3800-CR-TE5
Create an account to install this asset package.
Maintenance Plans for Kubota Diesel Engine Model V3800-CR-TE5
Integrate maintenance plans directly into your work orders in MaintainX.
250 Hourly Fan Belt Tension Adjustment
Safety Precautions
Stop the engine and remove the key
Reinstall the detached safety shield after maintenance or checking
Fan Belt Tension Adjustment
Apply moderate thumb pressure to belt between the pulleys
Is the belt tension correct?
Adjust Belt Tension
Loosen the alternator mounting bolts
Use a lever to pull the alternator out until the belt deflection is within acceptable limits
500 Hourly Motor Diesel Maintenance
Fuel Tank Maintenance
Remove sediment from the fuel tank
Radiator Maintenance
Clean the water jacket (radiator interior)
Consultation
Consult your local KUBOTA Dealer for this service
1500 Hourly Oil Separator Change
Safety Precautions
Ensure the engine is stopped before changing the oil separator element
Removal of Old Oil Separator
Remove the cover
Take out the oil separator element and gasket
Wipe oil and grease off the zone in question
Installation of New Oil Separator
Fit a new oil separator element into position
Fit a new gasket into position
3000 Hourly Motor Diesel Maintenance
Turbo-charger Inspection
Check the turbo-charger for any signs of wear or damage
Is the turbo-charger functioning properly?
EGR System Inspection
Check the EGR system for blockages or leaks
Is the EGR system operating correctly?
Consultation with KUBOTA Dealer
Consult your local KUBOTA Dealer for this service
Owner Responsibility
Water Separator Type 2 Drainage
Initial Checks
Is the water separator indicator light on?
Draining Procedure
Drain water from the switch assembly
Was the water completely drained from the separator?
Post-Drainage Actions
Air-bleed the fuel system
Is the fuel system properly air-bled?
Final Checks
