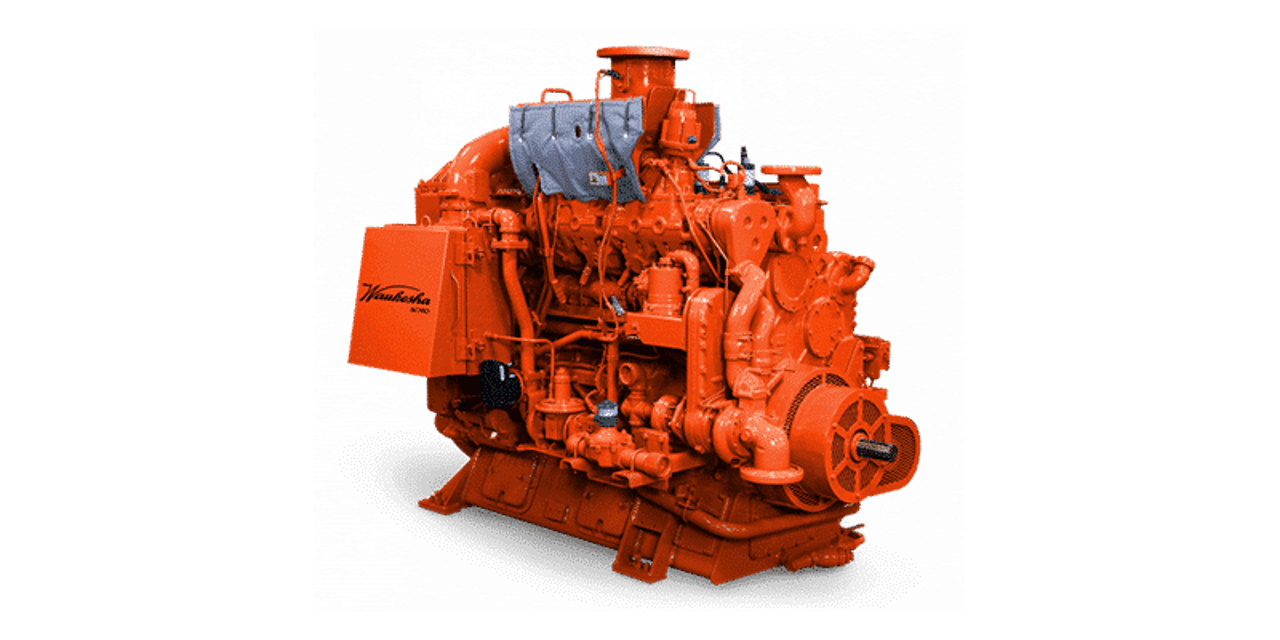

INNIO Waukesha Gas Engines Gas Engine VGF H24

Comply with the solvent manufacturer's recommendations for proper use and handling of solvents.

Ensure no gasoline, paint thinners, or other highly volatile fluids are used for cleaning.

Make match marks between the plate and the stub shaft before disassembly.

Clean metal parts using approved cleaning solvent.

Replace hex head screws if damaged.

Verify main bearing bore conditions

Is the main bearing bore in alignment?

Ensure correct installation of replacement bearing caps

Do the bearing cap numbers match the bearing saddle numbers?

Use crankcase spreader tool for late model crankcases?

Governor Oil Filter Maintenance

Change quick start governor oil filter

Was the maintenance completed successfully?

Describe any issues encountered during maintenance

Remove the valves from the cylinder head

Clean the valves with a power driven wire brush

Ensure no scratches on the valve stem after cleaning

Is valve recession greater than 0.118 in. (3.00 mm)?

Replace both valve and seat if recession exceeds limit

Is valve recession acceptable but requires replacement or reconditioning?

Clean magnetic plug -- turbo supply

Change oil filter elements and seals
