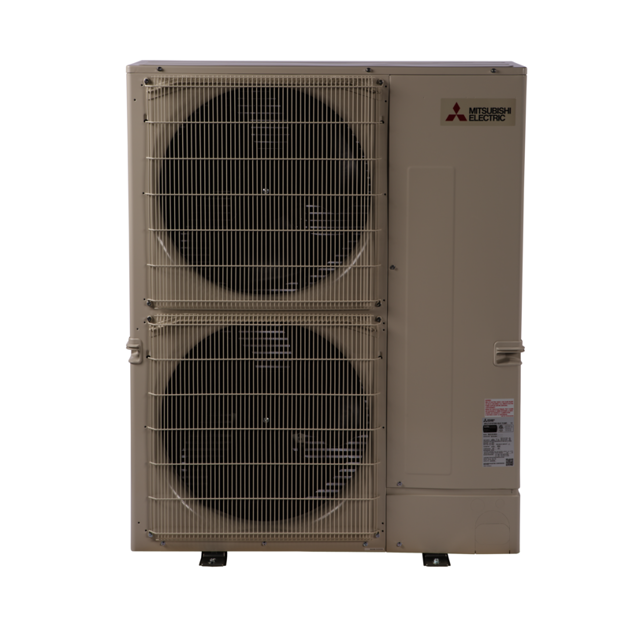

Mitsubishi Outdoor Unit MXZ-8C48NA2-U1

Need answers fast?
Explore the manual using AI.

Mitsubishi Outdoor Unit MXZ-8C48NA2-U1
Mitsubishi Outdoor Unit MXZ-8C48NA2-U1

Turn manuals into instant answers
with your AI-powered assistant
Turn manuals into instant answers
with your AI-powered assistant

PDF MANUAL

Manual for Mitsubishi Outdoor Unit MXZ-8C48NA2-U1

MAINTENANCE RESOURCES

Complete asset maintenance, one click away

Get instant access to all the maintenance information you need. Empower technicians to perform preventive maintenance with asset packages, ready to use right out of the box.

Documents

Documents & Manuals

Find all the essential guides in one place.

  • CheckTensioning Guide

  • CheckBelt-diagram

  • CheckC-120 pulleys

  • + 13 more

Work Orders

Work Order Templates

Pre-built workflows to keep your asset running smoothly.

  • CheckDaily Electrical System Inspection

  • CheckReplace Roller and Pulley

  • CheckInstall Engine B-120

  • + 29 more

Procedures

Procedures

Integrate maintenance plans directly into your work orders.

  • CheckMotion Industries

  • CheckApplied Industrial Technologies

  • CheckElectrical Brothers

  • + 5 more

Parts

Parts

Access the parts list for your equipment in MaintainX.

  • CheckDrive Motor

  • CheckB2 Rollers

  • CheckTensioning System

  • + 40 more

Mitsubishi Outdoor Unit MXZ-8C48NA2-U1

Mitsubishi Outdoor Unit MXZ-8C48NA2-U1

Create an account to install this asset package.

Maintenance Plans for Mitsubishi Outdoor Unit Model MXZ-8C48NA2-U1

Integrate maintenance plans directly into your work orders in MaintainX.

Motor Fan Disassembling

Check mark

Removing the fan motor (MF1, MF2)

Check mark

Remove the service panel. (See Photo 1)

Check mark

Remove the top panel. (See Photo 1)

Check mark

Remove 4 fan grille fixing screws (5 × 12) to detach the fan grille. (See Photo 1)

Check mark

Remove a nut (for right handed screw of M6) to detach the propeller. (See Photo 2)

Check mark

Disconnect the connectors, CNF1 and CNF2 on multi controller circuit board in electrical parts box.

Check mark

Remove 4 fan motor fixing screws (5 × 20) to detach the fan motor. (See Photo 3)

Check mark

Note: Tighten the propeller fan with a torque of 5.7 ± 0.3 N·m [4.2 ± 0.2 ft = lbs]

Run this procedureArrow right

Low Pressure Sensor Disassembling

Check mark

Panel Removal

Check mark

Remove the service panel

Check mark

Remove the top panel

Check mark

Remove the cover panel (front)

Check mark

Remove the cover panel (rear)

Check mark

Remove the side panel (R)

Check mark

Sensor Disconnection and Box Removal

Check mark

Disconnect the connector 63LS (blue) on the multi controller circuit board in the electrical parts box

Check mark

Remove the electrical parts box

Run this procedureArrow right

Service and Top Panels Disassembling

Check mark

Removing the service panel

Check mark

Remove 3 service panel fixing screws (5 × 12)

Check mark

Slide the hook on the right downward to remove the service panel

Check mark

Removing the top panel

Check mark

Remove 2 front screws (5 × 12) of the top panel

Check mark

Remove 3 rear screws (5 × 12) of the top panel

Check mark

Remove the top panel

Run this procedureArrow right

Thermistor (Ambient) TH7 Disassembling

Check mark

Panel Removal

Check mark

Remove the service panel. (See Photo 1)

Check mark

Remove the top panel. (See Photo 1)

Check mark

Electrical Disconnection

Check mark

Disconnect the connector TH7/6 (red) on the multi controller circuit board in the electrical parts box.

Check mark

Loosen the wire clamps on top of the electrical parts box. (See Photo 6)

Check mark

Thermistor Removal

Check mark

Pull out the thermistor <Ambient> (TH7) from the sensor holder.

Check mark

Replacement Note

Run this procedureArrow right

Thermistors Disassembling

Check mark

Preparation

Check mark

Remove the service panel

Check mark

Disconnect Connectors

Check mark

Disconnect TH3 (white) connector on the multi controller circuit board

Check mark

Disconnect TH4 (white) connector on the multi controller circuit board

Check mark

Disconnect TH2 (black) connector on the multi controller circuit board

Check mark

Remove Thermistors

Check mark

Pull out the thermistor <Outdoor liquid pipe> (TH3) from the sensor holder

Check mark

Pull out the thermistor <Compressor> (TH4) from the sensor holder

Run this procedureArrow right
