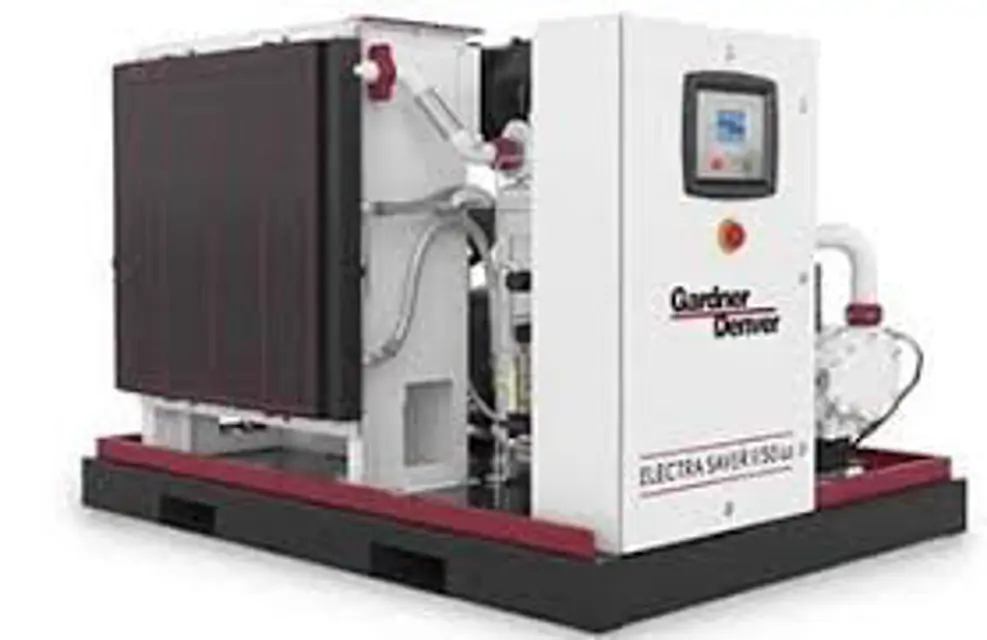

Gardner Denver Screw Air Compressor ECHSHCD

Create an account to install this asset package.

Maintenance Plans for Gardner Denver Screw Air Compressor Model ECHSHCD

Integrate maintenance plans directly into your work orders in MaintainX.

8 Hourly Compressor Maintenance

Check the reservoir oil level

Add oil if required

Observe if the unit loads and unloads properly

Drain the moisture trap in the control system

Check for moisture in the oil level gauge

Drain accumulated moisture if noted

Run this procedure

Compressor Oil System Check

Temperature Checks

Record Air and Oil Discharge Temperature

Record Compressor Oil Inlet Temperature

Pressure Checks

Record Oil Inlet Pressure

Record Oil Cooler Oil Pressure Differential (Air-Cooled Radiator)

Record Oil Cooler Oil Pressure Differential (Water-Cooled Heat Exchanger)

Record Oil Cooler Water Pressure Differential (Water-Cooled Heat Exchanger)

Temperature Differential Checks

Run this procedure

Motor Lubrication

Preparation

Stop the unit

Disconnect the unit from the power supply

Lubrication Process

Remove the relief plug and free the hole of hardened grease

Wipe the lubrication fitting clean

Add grease with a hand-operated grease gun

Post-Lubrication

Leave the relief plug temporarily off

Run this procedure

50 Hourly Filter Element Service

Initial Inspection and Removal

Record the pressure drop through the filter

Is the pressure drop 20 inches of water or more?

Is it time for a scheduled service?

Loosen the retaining band clamp

Remove the dust cup from the body of the filter

Visually inspect the element in place

Element Cleaning and Inspection

Does the element require cleaning?

Run this procedure

Oil Separator Replacement

Disconnection Phase

Disconnect oil return to compressor tubing at tee near discharge manifold flange on top plate.

Disconnect tubing from tee on top plate to top of discharge manifold at the tee. Loosen nut on fitting at top of manifold and completely withdraw the tubing through the fitting. Loosen nut on fitting on top plate and completely withdraw the tubing through the fitting.

Disconnect all other tubing from discharge manifold.

Disconnect discharge manifold pipe union.

Removal Phase

Remove screws holding the top plate to the oil reservoir tower. Lift top plate and the attached second-stage separator from the oil reservoir tower.

Invert top plate and second-stage separator. DO NOT REST THE ASSEMBLY ON THE SEPARATOR. Remove cap screws and washers holding second-stage separator and lift the separator from the top plate.

Lift the first-stage separator from the oil reservoir tower.

Run this procedure
