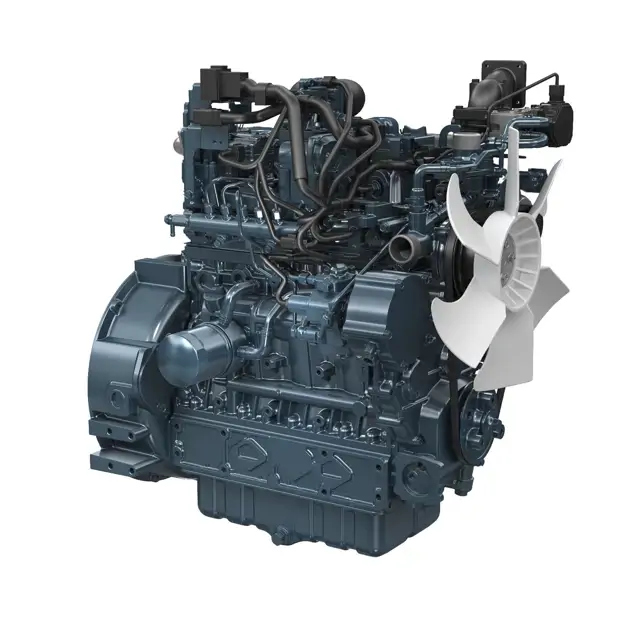

Kubota Diesel Engine V3800-CR-TE5-BG

Check the turbo-charger for any signs of wear or damage

Ensure the turbo-charger is functioning properly

Inspect the EGR system for blockages or leaks

Verify the EGR system is operating correctly

Consult your local KUBOTA Dealer for this service

Acknowledge responsibility for engine maintenance as per instructions

Review the Warranty Statement for detailed information

Checking of Radiator Hoses and Clamp Bands

Ensure personal safety by wearing appropriate protective gear.

Be cautious of hot surfaces to avoid burns.

Inspection of Radiator Hoses and Clamp Bands

Check the condition of the radiator hoses for the following issues

Are the radiator hoses properly fixed?

Are there any water leaks from the hose clamps?

Replace the following rubber piping

Consult your local KUBOTA Dealer for this service.

Stop the engine and remove the key

Reinstall the detached safety shield after maintenance or checking

Apply moderate thumb pressure to belt between the pulleys

Is the belt tension within acceptable limits?

Loosen the alternator mounting bolts

Use a lever to adjust the alternator position until belt deflection is 10 to 12 mm under load of 6 to 7 kgf

Open the evacuator valve once a week under ordinary conditions or daily in dusty environments.

Air Cleaner Inspection and Cleaning

Wipe the inside of the air cleaner with a cloth if it is dirty or wet.

Is the air cleaner element free from dry dust?

Measure the pressure of compressed air used for cleaning the element (must be under 205 kPa).

Blow compressed air from the inside of the element while turning it.

Has the primary element been cleaned 6 times or is it heavily stained?
