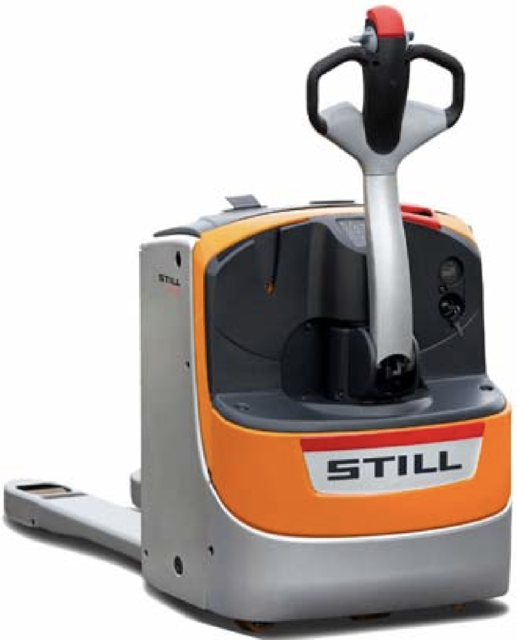

Still Electric Pallet Truck EXU-22

CAUTION! Before commencing work, unplug the battery connector by pulling the emergency stop handle

Battery cover opened and connector disconnected

Electrolyte level up to the base of the plug, slightly above the splash guard

Demineralised water added to top up cells with a low water level

Sign off on the electrolyte level check

Lower the load arms to the ground to eliminate pressure in the hydraulic circuit

Switch off the ignition and unplug the battery connector

Disconnect the power supply to the solenoid valve (3)

Disconnect the cylinder supply hose (1)

Remove the 2 screws (2) that hold the upper support (angle bracket) in place

Remove the unit's upper support and the filler tube/breather

Unscrew the tank's mounting clip

Control fuses are accessed by removing the front hood

The 125 A fuse (1) protects the traction and lifting power circuit

The 7,5 A fuse (2) protects the control circuit

We recommend that this operation be carried out by our After-Sales Service Centre

Warning: This maintenance check requires trained personnel with PPE!

Check the tyres and the wear on the wheels and rollers

The tyre tread on the drive wheel (1), the stabilising wheel (2) and the rollers (3) must not be damaged

Replace damaged or worn wheels with new wheels, and damaged or worn rollers with new ones

CAUTION! A wrongly adjusted stabilising wheel can lead to stability problems. This adjustment must be carried out by our service department

Adjusting the height of the stabilisers!

NOTE! Adjusting the clevis (1) with new drive wheel and stabiliser wheels R = 22 mm

Lower the stabilisers to stabilise the truck

Lift the stabilisers if the truck often encounters obstacles and if grip must be improved

Check that the cable insulation is undamaged and that there are no signs of overheating at the connections

Check that the '+' and '-' output terminals are not sulfated (presence of white salt)

Check the condition of the power outlet contacts and the presence of the keying pin

Check the condition of the locking tab on the battery connector

CAUTION! The points mentioned above can cause serious incidents. In the event of a fault, please contact the After-Sales Service;

Sign off on the electrical equipment check
