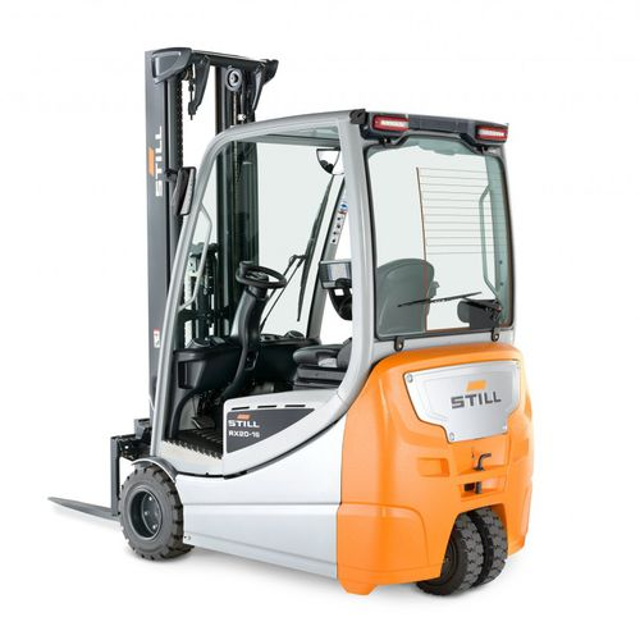

Still Electric Forklift RX20-16

Create an account to install this asset package.

Maintenance Plans for Still Electric Forklift Model RX20-16

Integrate maintenance plans directly into your work orders in MaintainX.

1000 Hourly / 1 Yearly Forklift Maintenance

1. Read out the error numbers and clear the list

2. Reset the maintenance interval

3. Check that the labelling is complete

4. Perform a test drive

- Lif Cylinder Check (p. 357)

"WARNING! Risk of injury! Observe safety regulations for working on the lift mast, see the ""Working at the front of the truck"" chapter

1. Check the hydraulic connections and lift cylinder for leaks (visual inspection)

2. Have leaking screw joints or leaking hydraulic cylinders repaired by the authorised service centre;" - Fork Arms Check (p. 358)

1. Check the fork arms (1) for any visible deformation. Wear must not amount to more than 10% of the original thickness

Run this procedure

1000 Hourly / 1 Yearly Electrical System Check

Check all power cable connections

Check that the switches, transmitters and sensors are working correctly

Check the lighting and indicator lights

Run this procedure

Drive Seat Check

WARNING! Risk of injury! After an accident, check the driver's seat with attached restraining belt and fastening

Check the controls for correct operation

Check the condition of the seat (e.g. wear on the upholstery) and secure fastening to the hood

WARNING Risk of injury! Have the seat repaired by the service centre if you identify any damage during the checks

Sign off on the drive seat check

Run this procedure

1000 Hourly / 1 Yearly Hydraulic System Check

1. Check the condition of the hydraulic system, check that it is working correctly and check for leaks - Hose lines must be changed if

• The outer layer has been breached or becomes brittle with tears

• They are leaking

• There are unnatural deformations (e.g. bubble formation or buckling)

• A fitting is detached from the hose

• A fitting is badly damaged or corroded

- Pipes must be changed if

• There is abrasion with the loss of material

• There are unnatural deformations and detectable bending stress

Run this procedure

1000 Hourly / 1 Yearly Hydraulic Oil Level Check

Park the truck securely

CAUTION! Risk of component damage! If you remove the battery male connector when the key switch is switched on (under load), an arc will be produced. This can lead to erosion at the contacts, which considerably shortens their service life

Switch off the key switch before the battery male connector is disconnected

Only disconnect the battery male connector with the key switch switched on in an emergency

Disconnect the battery male connector

Remove maintenance lid or bottom plate

CAUTION! Hydraulic oils are hazardous to your health and are under pressure during operation. Note the safety regulations in the 'Hydraulic fluid' chapter

CAUTION! Risk of damage to components! Remove connector for drive unit

Unscrew breather filter (1)

Run this procedure
