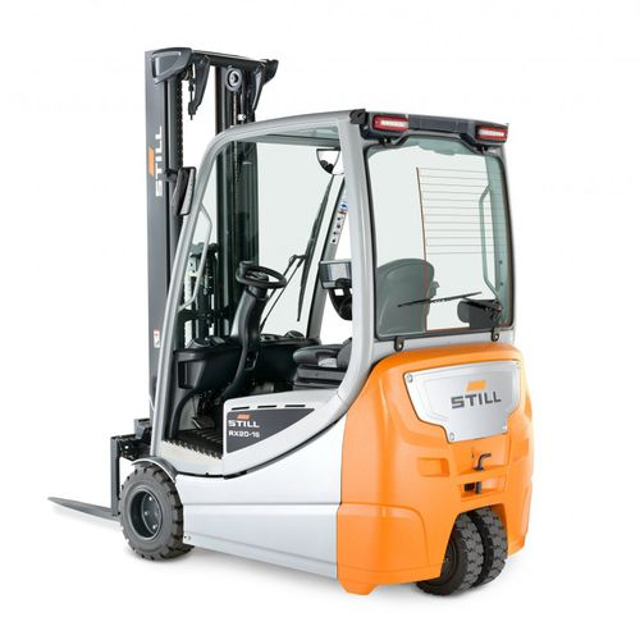

Still Electric Forklift RX20-18P

1. Clean the seat belt as necessary, but without using chemical cleaning materials (a brush will suffice)

- Replacement after an accident

1. As a rule, the seat belt must be changed after an accident;

WARNING! Risk of injury! After an accident, check the driver's seat with attached restraining belt and fastening

Check the controls for correct operation

Check the condition of the seat (e.g. wear on the upholstery) and secure fastening to the hood

WARNING Risk of injury! Have the seat repaired by the service centre if you identify any damage during the checks

Sign off on the drive seat check

1. Check the condition of the hydraulic system, check that it is working correctly and check for leaks - Hose lines must be changed if

• The outer layer has been breached or becomes brittle with tears

• There are unnatural deformations (e.g. bubble formation or buckling)

• A fitting is detached from the hose

• A fitting is badly damaged or corroded

• There is abrasion with the loss of material

• There are unnatural deformations and detectable bending stress

NOTE! Perform all 1000-hour maintenance work

Change the gearbox oil in the drive wheel unit

Replace the bleeder screws on the drive wheel units

1. Read out the error numbers and clear the list

2. Reset the maintenance interval

3. Check that the labelling is complete

"WARNING! Risk of injury! Observe safety regulations for working on the lift mast, see the ""Working at the front of the truck"" chapter

1. Check the hydraulic connections and lift cylinder for leaks (visual inspection)

2. Have leaking screw joints or leaking hydraulic cylinders repaired by the authorised service centre;" - Fork Arms Check (p. 358)

1. Check the fork arms (1) for any visible deformation. Wear must not amount to more than 10% of the original thickness
