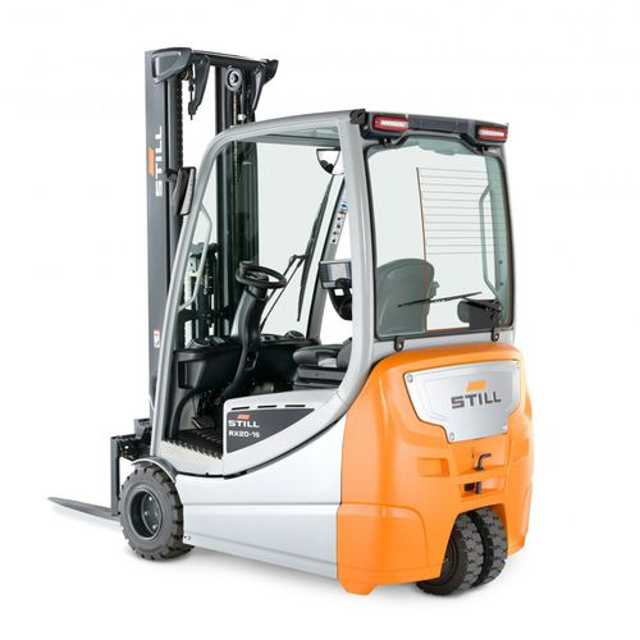

Still Electric Forklift RX 20-14C

Check the mounting of the drive axle, check for leaks and clean the cooling fins

Check that the conductor rails between the power modules and the motor connections are mounted correctly

Check the oil level in the drive wheel unit and the multi-disc brake

Change the gearbox oil (once after the first 1000 hours)

Sign off on the power unit maintenance

Check the condition of the antistatic belt or antistatic electrode

Check that the heating system is working correctly, observe the manufacturer's maintenance instructions

Check the attachments for wear and for damage, observe the manufacturer's maintenance instructions

Check the trailer coupling for wear and for damage, observe the manufacturer's maintenance instructions

Check the mast bearings for damage. Lubricate the mast bearings and check the tightening torque

Check the mast profiles for damage and wear. Lubricate the mast profiles

Check the guide in the lower (load reversal) mast profile for damage and for wear

Check the load chains for damage and wear. Adjust and lubricate the load chains

Check the lift cylinders and connections for damage and for leaks

Check the guide pulleys for damage and for wear

Check the support rollers and chain rollers for damage and for wear

Check the play between the fork carriage stop and the run-out barrier

Check the tilt cylinders and connections for damage and for leaks

1. Read out the error numbers and clear the list

2. Reset the maintenance interval

3. Check that the labelling is complete

"WARNING! Risk of injury! Observe safety regulations for working on the lift mast, see the ""Working at the front of the truck"" chapter

1. Check the hydraulic connections and lift cylinder for leaks (visual inspection)

2. Have leaking screw joints or leaking hydraulic cylinders repaired by the authorised service centre;" - Fork Arms Check (p. 358)

1. Check the fork arms (1) for any visible deformation. Wear must not amount to more than 10% of the original thickness

Dirt and lubricant residue removed from the roller track

Roller tracks of the outside, middle, and inside mast lubricated with a super-pressure adhesion lubricant

NOTE! Spray the roller track evenly from a distance of approx. 15-20 cm. Wait approx. 15 minutes until the equipment is ready to use again

Sign off on the lubrication process
