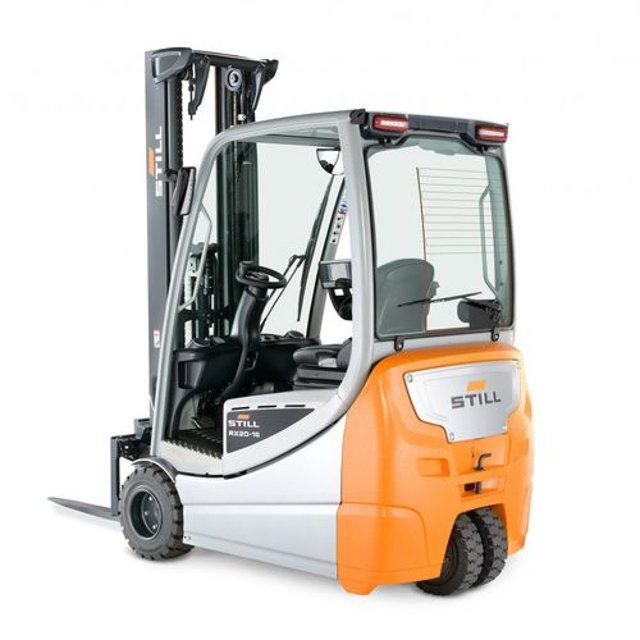

Still Electric Forklift RX20-16PL

Check the mast bearings for damage

Lubricate the mast bearings and check the tightening torque

Check the mast profiles for damage and wear

Check the guide in the lower (load reversal) mast profile for damage and for wear

Check the load chains for damage and wear

Adjust and lubricate the load chains

Check the lift cylinders and connections for damage and for leaks

Check the guide pulleys for damage and for wear

1. Check the condition of the hydraulic system, check that it is working correctly and check for leaks - Hose lines must be changed if

• The outer layer has been breached or becomes brittle with tears

• There are unnatural deformations (e.g. bubble formation or buckling)

• A fitting is detached from the hose

• A fitting is badly damaged or corroded

• There is abrasion with the loss of material

• There are unnatural deformations and detectable bending stress

1. Clean the seat belt as necessary, but without using chemical cleaning materials (a brush will suffice)

- Replacement after an accident

1. As a rule, the seat belt must be changed after an accident;

Dirt and lubricant residue removed from the roller track

Roller tracks of the outside, middle, and inside mast lubricated with a super-pressure adhesion lubricant

NOTE! Spray the roller track evenly from a distance of approx. 15-20 cm. Wait approx. 15 minutes until the equipment is ready to use again

Sign off on the lubrication process

NOTE! The interval for greasing is influenced significantly by the application conditions and the environmental conditions affecting the truck. Visual inspections and function checking of the interlock must be carried out as required and after every 1000 hours. Grease all moving parts of the interlock as necessary

Check that the door lock (2) and the battery lock (4) move easily and that they are not deformed or damaged

Check that the indexing bolt (3) on the door lock is seated correctly and that it is not deformed or damaged

Grease the mechanisms of the interlocks

Sign off on the interlock mechanism lubrication
