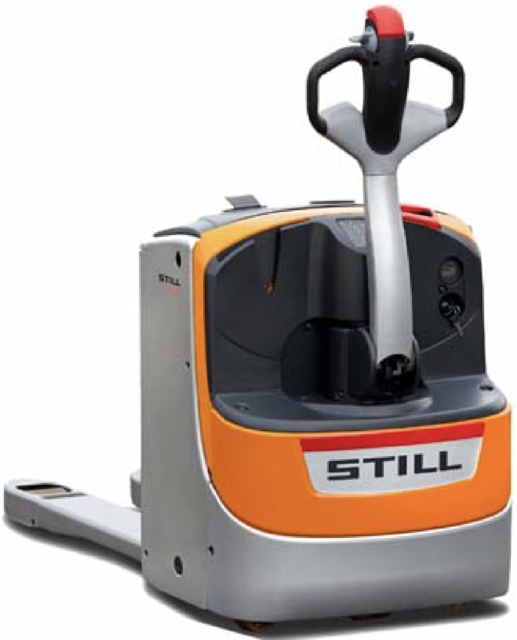

Still Electric Pallet Truck EXU-20

Lower the load arms to the ground to eliminate pressure in the hydraulic circuit

Switch off the ignition and unplug the battery connector

Disconnect the power supply to the solenoid valve (3)

Disconnect the cylinder supply hose (1)

Remove the 2 screws (2) that hold the upper support (angle bracket) in place

Remove the unit's upper support and the filler tube/breather

Unscrew the tank's mounting clip

Switch off the ignition and pull the emergency stop handle

Pull back the cover of the technical compartment (see description in ′′Access to the technical compartment′′)

The oil level is in the centre between the minimum and maximum marks on the tank for correct use of the truck functions

Replace and tighten the plug afterwards

CAUTION! Only use hydraulic oil that complies with the specifications (see lubrication table)

Sign off on the hydraulic oil level check

WARNING! Risk of injury! This task must be carried out by a person wearing acid-resistant protective gloves and industrial goggles. Follow the safety regulations described in previous chapters

NOTE! Do not pour acid-bearing wash water down the drain. For more information, see the battery instructions

1. Check for traces of sulphate in the compartment and frame

2. If there is only minimal sulphate build-up, just wipe the top of the cells with a damp cloth

3. If sulphate build-up is heavy, you will need to take out the battery, jet wash it and clean the frame

1. Check that there are no electrolytes at the bottom of the compartment by connecting the rubber suction bulb supplied with the battery to the plastic pump tube

2. Pump off any electrolyte that may have spilled between the cells

CAUTION! Before commencing work, unplug the battery connector by pulling the emergency stop handle

This check and any topping up required should be carried out every week, after charging an open lead battery only

Cover opened and battery connector disconnected

Check the level, which should be up to the base of the plug, slightly above the splash guard

Demineralised water added to top up cells with a low water level

Sign off on the electrolyte level check

NOTE! The folding platform must be checked regularly. The following operations must be carried out at least every three months or every 500 hours

Check that the folding platform operates correctly

Clean and lubricate the articulated parts of the platform

Sign off on the folding platform check
