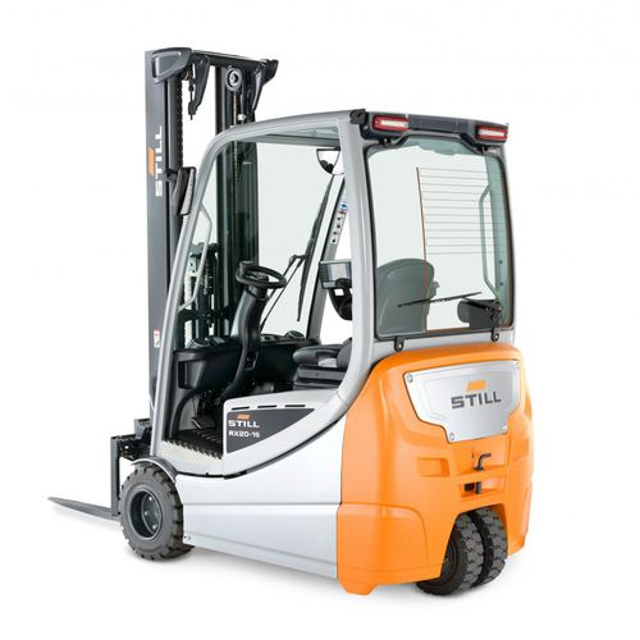

Still Electric Forklift RX 20-20

1. Clean the seat belt as necessary, but without using chemical cleaning materials (a brush will suffice)

- Replacement after an accident

1. As a rule, the seat belt must be changed after an accident;

Check that the fans and the air ducts are working correctly and check for damage

Clean the fans and the air ducts

Clean the cooling fins on the converter and the traction motors

NOTE! Carry out the following checks on a regular basis (monthly). In the case of significant strain, a daily check is necessary

Pull out the belt (3) completely and check for wear. The belt must not be frayed or cut. The stitching must not be loose

Check whether the belt is dirty

Check whether parts are worn or damaged, including the attachment points

Check the buckle (1) to ensure that it locks in properly. When the belt tongue (2) is inserted, the belt must be held securely

The belt tongue (2) must release when the red button (4) is pressed

The automatic blocking mechanism must be tested at least once a year

Park the forklift truck on level ground

Pull out the belt with a jerk. The automatic blocking mechanism must block extension of the belt

Check the mast bearings for damage

Lubricate the mast bearings and check the tightening torque

Check the mast profiles for damage and wear

Check the guide in the lower (load reversal) mast profile for damage and for wear

Check the load chains for damage and wear

Adjust and lubricate the load chains

Check the lift cylinders and connections for damage and for leaks

Check the guide pulleys for damage and for wear

1. Check the lead-acid battery for damage and check the acid density; observe the manufacturer's maintenance instructions

Variant: Replace the non-return valve on lead-acid batteries with electrolyte circulation

Variant: Observe the manufacturer's maintenance instructions for lithium-ion batteries

2. Check the appliance plug and the truck harness for damage

3. Check the battery male connector and the battery harness for damage

4. Check that the battery door, and the sensor if necessary, is working correctly and check for damage

5. Check the battery lock for damage

6. Grease the battery door hinges

Variant: Check the oil level of the hydraulic battery carrier and check for leaks. Check all moving parts for wear and lubricate them
