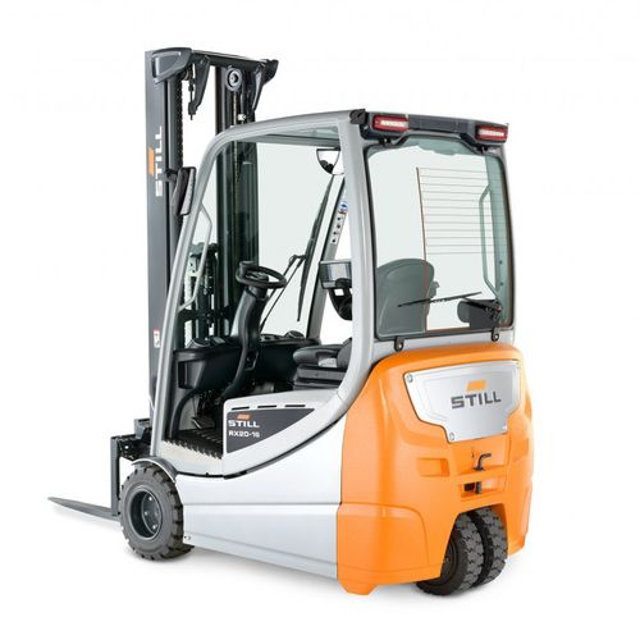

Still Electric Forklift RX20-16L

CAUTION! Risk of component damage! If you remove the battery male connector when the key switch is switched on (under load), an arc will be produced. This can lead to erosion at the contacts, which considerably shortens their service life

Switch off the key switch before the battery male connector is disconnected

Only disconnect the battery male connector with the key switch switched on in an emergency

Battery male connector disconnected

Maintenance lid or bottom plate removed

CAUTION! Hydraulic oils are hazardous to your health and are under pressure during operation. Note the safety regulations in the 'Hydraulic fluid' chapter

CAUTION! Risk of damage to components! Remove connector for drive unit

NOTE! The interval for greasing is influenced significantly by the application conditions and the environmental conditions affecting the truck. Visual inspections and function checking of the interlock must be carried out as required and after every 1000 hours. Grease all moving parts of the interlock as necessary

Check that the door lock (2) and the battery lock (4) move easily and that they are not deformed or damaged

Check that the indexing bolt (3) on the door lock is seated correctly and that it is not deformed or damaged

Grease the mechanisms of the interlocks

Warning: Only trained personnel should perform this procedure

Lead-acid batteries charged at least once per week

All battery cells evenly charged

Prevented deep discharge of the battery

Sign off on the battery charging procedure

Check the condition of the antistatic belt or antistatic electrode

Check that the heating system is working correctly, observe the manufacturer's maintenance instructions

Check the attachments for wear and for damage, observe the manufacturer's maintenance instructions

Check the trailer coupling for wear and for damage, observe the manufacturer's maintenance instructions

Check the condition of all mechanical brake parts and check that they are working correctly

Check the actuation distance of the foot brake and adjust if necessary

Check the manual force required to apply the handbrake and adjust if necessary

Check the play between the fork clevis and the axle lever and adjust if necessary
