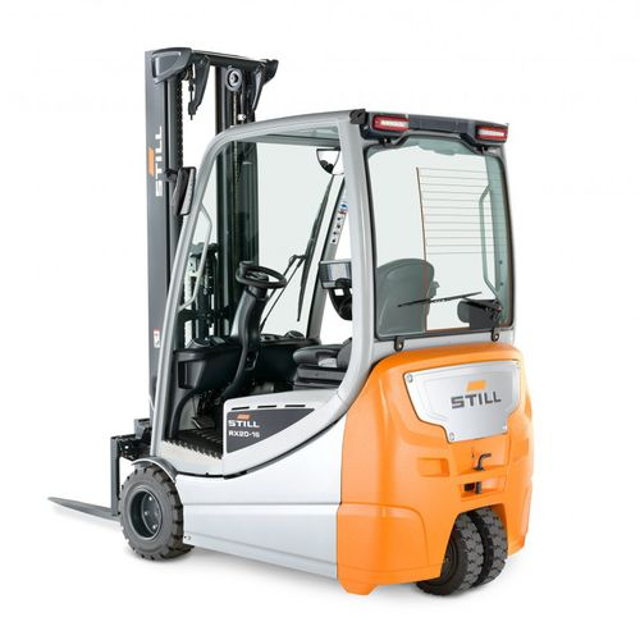

Still Electric Forklift RX20-20P

NOTE! Perform all 1000-hour maintenance work

Replace the return line filter and the breather filter

Choose the type of filter replaced

Sign off on the hydraulic system replacement

1. Check the condition of the hydraulic system, check that it is working correctly and check for leaks - Hose lines must be changed if

• The outer layer has been breached or becomes brittle with tears

• There are unnatural deformations (e.g. bubble formation or buckling)

• A fitting is detached from the hose

• A fitting is badly damaged or corroded

• There is abrasion with the loss of material

• There are unnatural deformations and detectable bending stress

Check the mounting of the drive axle, check for leaks and clean the cooling fins

Check that the conductor rails between the power modules and the motor connections are mounted correctly

Check the oil level in the drive wheel unit and the multi-disc brake

Change the gearbox oil (once after the first 1000 hours)

Check the mast bearings for damage. Lubricate the mast bearings and check the tightening torque

Check the mast profiles for damage and wear. Lubricate the mast profiles

Check the guide in the lower (load reversal) mast profile for damage and for wear

Check the load chains for damage and wear. Adjust and lubricate the load chains

Check the lift cylinders and connections for damage and for leaks

Check the guide pulleys for damage and for wear

Check the support rollers and chain rollers for damage and for wear

Check the play between the fork carriage stop and the run-out barrier

Check the tilt cylinders and connections for damage and for leaks

1. Check the lead-acid battery for damage and check the acid density; observe the manufacturer's maintenance instructions

Variant: Replace the non-return valve on lead-acid batteries with electrolyte circulation

Variant: Observe the manufacturer's maintenance instructions for lithium-ion batteries

2. Check the appliance plug and the truck harness for damage

3. Check the battery male connector and the battery harness for damage

4. Check that the battery door, and the sensor if necessary, is working correctly and check for damage

5. Check the battery lock for damage

6. Grease the battery door hinges

Variant: Check the oil level of the hydraulic battery carrier and check for leaks. Check all moving parts for wear and lubricate them
