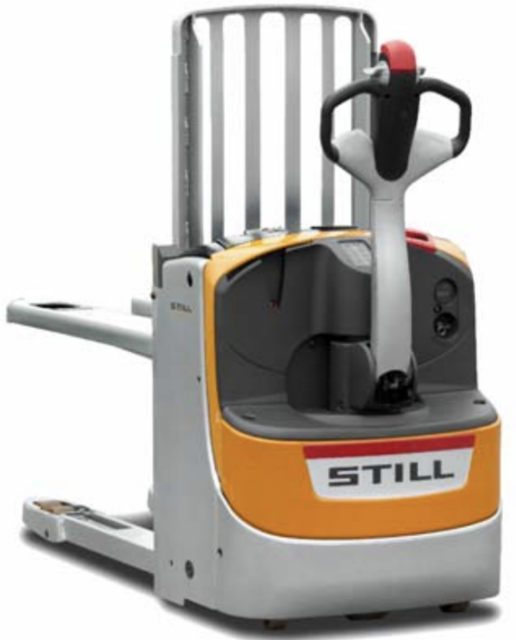

Still Electric Pallet Truck EXU-H18

Check that the cable insulation is undamaged and that there are no signs of overheating at the connections

Check that the '+' and '-' output terminals are not sulfated (presence of white salt)

Check the condition of the power outlet contacts and the presence of the keying pin

Check the condition of the locking tab on the battery connector

CAUTION! The points mentioned above can cause serious incidents. In the event of a fault, please contact the After-Sales Service;

Sign off on the electrical equipment check

NOTE! The folding platform must be checked regularly. The following operations must be carried out at least every three months or every 500 hours

Check that the folding platform operates correctly

Clean and lubricate the articulated parts of the platform

Sign off on the folding platform check

CAUTION! Before commencing work, unplug the battery connector by pulling the emergency stop handle

Battery cover opened and connector disconnected

Electrolyte level up to the base of the plug, slightly above the splash guard

Demineralised water added to top up cells with a low water level

Sign off on the electrolyte level check

Always park the truck as specified

Disconnect the battery connector (4)

CAUTION! Disconnect the battery connector when washing the truck

Truck exterior cleaned with water and cleaning agents soluble in water

Oil filler openings and the surrounding area cleaned

Required assemblies greased (mast, controls and joints)

WARNING! Do not aim the steam cleaning device directly on electric motors and other electric components, brakes and bearings

Electrical components cleaned with a non-metallic brush and blow dry with a weak jet of air

Truck dried thoroughly (eg with compressed air)

1. Control fuses are accessed by removing the front hood

- The 125 A fuse (1) protects the traction and lifting power circuit

- The 7,5 A fuse (2) protects the control circuit

- We recommend that this operation be carried out by our After-Sales Service Centre;
