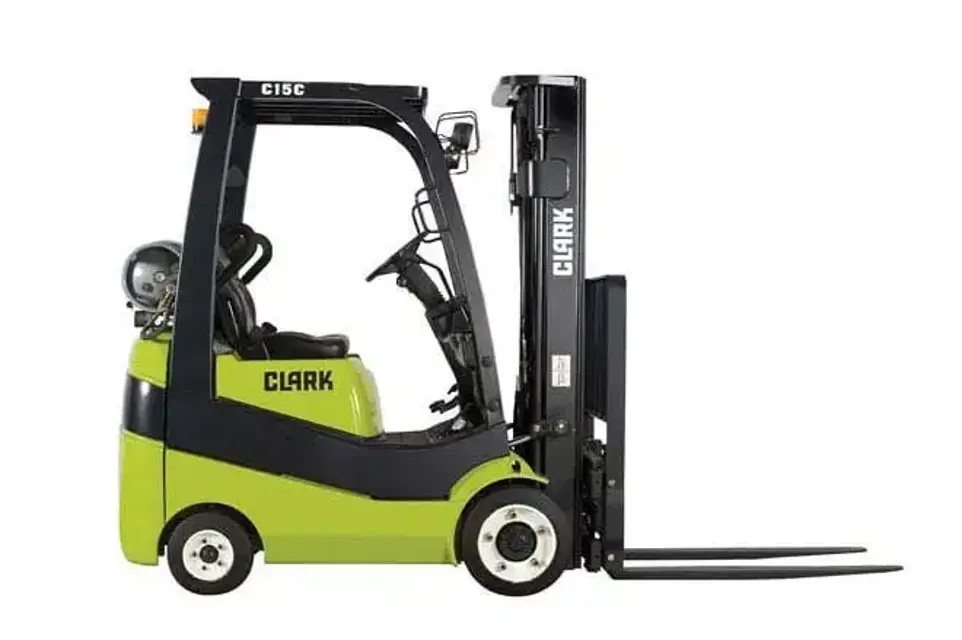

Clark Forklift C18D

Clean or replace engine air filter (GAS/LPG)

Replace transmission oil C15-35

Check / lubricate steer axle wheel bearings

Replace hydraulic sump oil and hydraulic oil filter

Check injection nozzles and injection timing (diesel engine)

Sign off on the forklift maintenance

Check the tightening torque of critical fastening elements

Grease steering tie rods and steering knuckle

Cleaning, checking and lubricating the upright inside rails, rollers and side loader

Check the air intake system for leaks

Check ignition timing and contacts

Carry out an extraordinary check of the LPG system

Replace fuel filter element (Diesel)

Replace transmission oil filter C40-80

Replace drive axle oil - GTS20-30,C40-80

Sign off on the forklift maintenance

Warning: This inspection requires trained personnel with knowledge of LPG systems!

LPG system in operationally safe state?

Change the engine oil / Replace engine oil filter

Grease the sealing ring on the new filter cartridge and screw in the cartridge until it is hand tight

Remove the oil pan drain plug to drain old oil after the truck has been in operation and the engine (oil) is at operating temperature

Check for leaks after changing oil and installing new filter

• Every 1000 operational hours, or once annually, the filter elememts in the liquid gas preliminary filter and in the shut-off valve must be renewed, as well as diaphragms, seals and valves.

• After each maintenance, the cap screws of the evaporator pressure regulator must be tightened with a torque of 4.1±0.3 Nm.

• Check the LPG system after every repair or service to make sure that it is free of leaks.

Engine air cleaner • Check the engine air cleaner for damage and contamination (excessive dirt buildup and clogging). Be sure that the air cleaner hose is securely connected (not loose or leaking). Fan or cone shaped dust deposits on tube or hose surfaces indicate a leak.

• Change or service the air cleaner element every 2000 operating hours for LPG/Gas engine, every 1000 operating hours for Diesel engine depending upon your application.

• Service intervals may also be determined by the air restriction indicator.

• Clean the air filter housing thoroughly before fitting the filter.

• Do not open the air filter housing to check the filter element.
