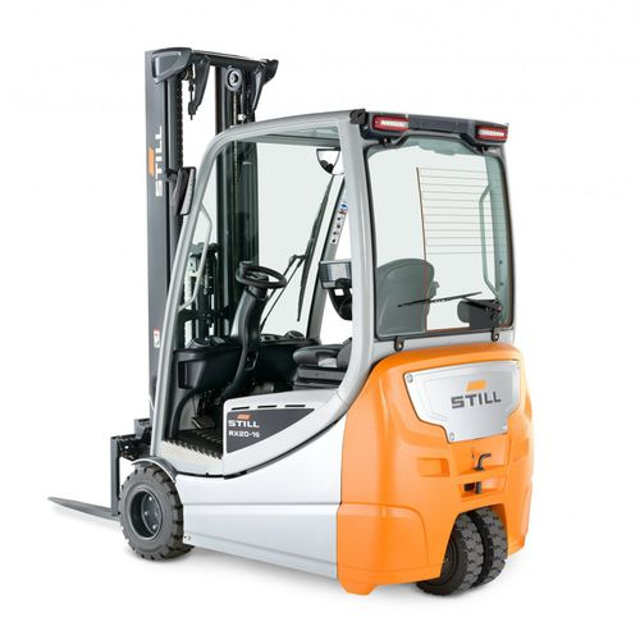

Still Electric Forklift RX20-16C

1. Read out the error numbers and clear the list

2. Reset the maintenance interval

3. Check that the labelling is complete

"WARNING! Risk of injury! Observe safety regulations for working on the lift mast, see the ""Working at the front of the truck"" chapter

1. Check the hydraulic connections and lift cylinder for leaks (visual inspection)

2. Have leaking screw joints or leaking hydraulic cylinders repaired by the authorised service centre;" - Fork Arms Check (p. 358)

1. Check the fork arms (1) for any visible deformation. Wear must not amount to more than 10% of the original thickness

Check all power cable connections

Check that the switches, transmitters and sensors are working correctly

Check the lighting and indicator lights

1. Check the lead-acid battery for damage and check the acid density; observe the manufacturer's maintenance instructions

Variant: Replace the non-return valve on lead-acid batteries with electrolyte circulation

Variant: Observe the manufacturer's maintenance instructions for lithium-ion batteries

2. Check the appliance plug and the truck harness for damage

3. Check the battery male connector and the battery harness for damage

4. Check that the battery door, and the sensor if necessary, is working correctly and check for damage

5. Check the battery lock for damage

6. Grease the battery door hinges

Variant: Check the oil level of the hydraulic battery carrier and check for leaks. Check all moving parts for wear and lubricate them

WARNING! Risk of injury! After an accident, check the driver's seat with attached restraining belt and fastening

Check the controls for correct operation

Check the condition of the seat (e.g. wear on the upholstery) and secure fastening to the hood

WARNING Risk of injury! Have the seat repaired by the service centre if you identify any damage during the checks

Sign off on the drive seat check

1. Clean the seat belt as necessary, but without using chemical cleaning materials (a brush will suffice)

- Replacement after an accident

1. As a rule, the seat belt must be changed after an accident;
