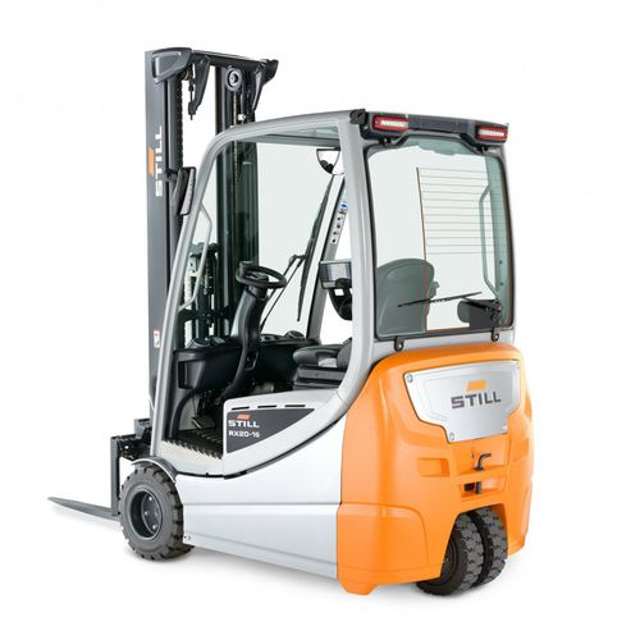

Still Electric Forklift RX20-18

1. Check the lead-acid battery for damage and check the acid density; observe the manufacturer's maintenance instructions

Variant: Replace the non-return valve on lead-acid batteries with electrolyte circulation

Variant: Observe the manufacturer's maintenance instructions for lithium-ion batteries

2. Check the appliance plug and the truck harness for damage

3. Check the battery male connector and the battery harness for damage

4. Check that the battery door, and the sensor if necessary, is working correctly and check for damage

5. Check the battery lock for damage

6. Grease the battery door hinges

Variant: Check the oil level of the hydraulic battery carrier and check for leaks. Check all moving parts for wear and lubricate them

NOTE! Perform all 1000-hour maintenance work

Replace the return line filter and the breather filter

Choose the type of filter replaced

Sign off on the hydraulic system replacement

1. Read out the error numbers and clear the list

2. Reset the maintenance interval

3. Check that the labelling is complete

"WARNING! Risk of injury! Observe safety regulations for working on the lift mast, see the ""Working at the front of the truck"" chapter

1. Check the hydraulic connections and lift cylinder for leaks (visual inspection)

2. Have leaking screw joints or leaking hydraulic cylinders repaired by the authorised service centre;" - Fork Arms Check (p. 358)

1. Check the fork arms (1) for any visible deformation. Wear must not amount to more than 10% of the original thickness

1. Clean the seat belt as necessary, but without using chemical cleaning materials (a brush will suffice)

- Replacement after an accident

1. As a rule, the seat belt must be changed after an accident;

NOTE! Perform all 1000-hour maintenance work

Change the gearbox oil in the drive wheel unit

Replace the bleeder screws on the drive wheel units
