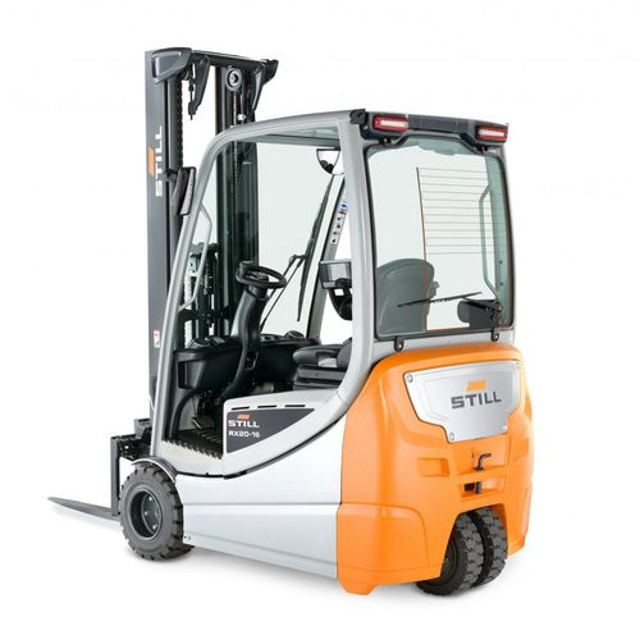

Still Electric Forklift RX20-20L

CAUTION! Risk of component damage! If you remove the battery male connector when the key switch is switched on (under load), an arc will be produced. This can lead to erosion at the contacts, which considerably shortens their service life

Switch off the key switch before the battery male connector is disconnected

Only disconnect the battery male connector with the key switch switched on in an emergency

Disconnect the battery male connector

Remove maintenance lid or bottom plate

CAUTION! Hydraulic oils are hazardous to your health and are under pressure during operation. Note the safety regulations in the 'Hydraulic fluid' chapter

CAUTION! Risk of damage to components! Remove connector for drive unit

Check the mounting of the drive axle, check for leaks and clean the cooling fins

Check that the conductor rails between the power modules and the motor connections are mounted correctly

Check the oil level in the drive wheel unit and the multi-disc brake

Change the gearbox oil (once after the first 1000 hours)

Sign off on the power unit maintenance

Warning: Only trained personnel should perform this procedure

Lead-acid batteries charged at least once per week

All battery cells evenly charged

Prevented deep discharge of the battery

Sign off on the battery charging procedure

Check the condition of the antistatic belt or antistatic electrode

Check that the heating system is working correctly, observe the manufacturer's maintenance instructions

Check the attachments for wear and for damage, observe the manufacturer's maintenance instructions

Check the trailer coupling for wear and for damage, observe the manufacturer's maintenance instructions

1. Read out the error numbers and clear the list

2. Reset the maintenance interval

3. Check that the labelling is complete

"WARNING! Risk of injury! Observe safety regulations for working on the lift mast, see the ""Working at the front of the truck"" chapter

1. Check the hydraulic connections and lift cylinder for leaks (visual inspection)

2. Have leaking screw joints or leaking hydraulic cylinders repaired by the authorised service centre;" - Fork Arms Check (p. 358)

1. Check the fork arms (1) for any visible deformation. Wear must not amount to more than 10% of the original thickness
