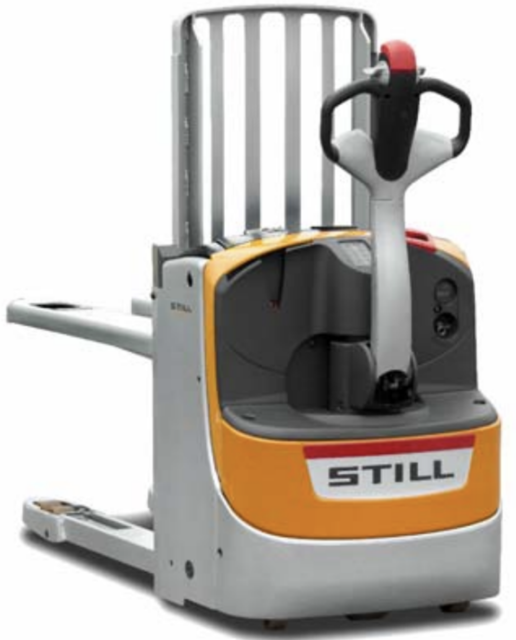

Still Electric Pallet Truck EXU-H20

Clean and blow out the electrical plate

Check the mounting of the electrical connections

Check the condition of the on-board charger

Check that the cables and fuses are secure

Check and adjust the battery electrolyte level

Clean the sensors for the automatic lifting function

Sign off on the electrical equipment maintenance

Switch off the ignition and pull the emergency stop handle

Pull back the cover of the technical compartment (see description in ′′Access to the technical compartment′′)

Is the oil level in the centre between the minimum and maximum marks on the tank?

Replace and tighten the plug afterwards

CAUTION! Only use hydraulic oil that complies with the specifications (see lubrication table);

Warning: This maintenance check requires trained personnel with PPE!

Check the tyres and the wear on the wheels and rollers

The tyre tread on the drive wheel (1), the stabilising wheel (2) and the rollers (3) must not be damaged

Replace damaged or worn wheels with new wheels, and damaged or worn rollers with new ones

CAUTION! A wrongly adjusted stabilising wheel can lead to stability problems. This adjustment must be carried out by our service department

Adjusting the height of the stabilisers

Lower the stabilisers to stabilise the truck

Lift the stabilisers if the truck often encounters obstacles and if grip must be improved

Loosen the lock nut (2) (36 spanner) by holding the ball bearing (3) by its flat surface (36 spanner)

1. Control fuses are accessed by removing the front hood

- The 125 A fuse (1) protects the traction and lifting power circuit

- The 7,5 A fuse (2) protects the control circuit

- We recommend that this operation be carried out by our After-Sales Service Centre;

CAUTION! Before commencing work, unplug the battery connector by pulling the emergency stop handle

This check and any topping up required should be carried out every week, after charging an open lead battery only

Battery cover opened and connector disconnected

Electrolyte level is up to the base of the plug, slightly above the splash guard

Demineralised water added to top up cells with a low water level
