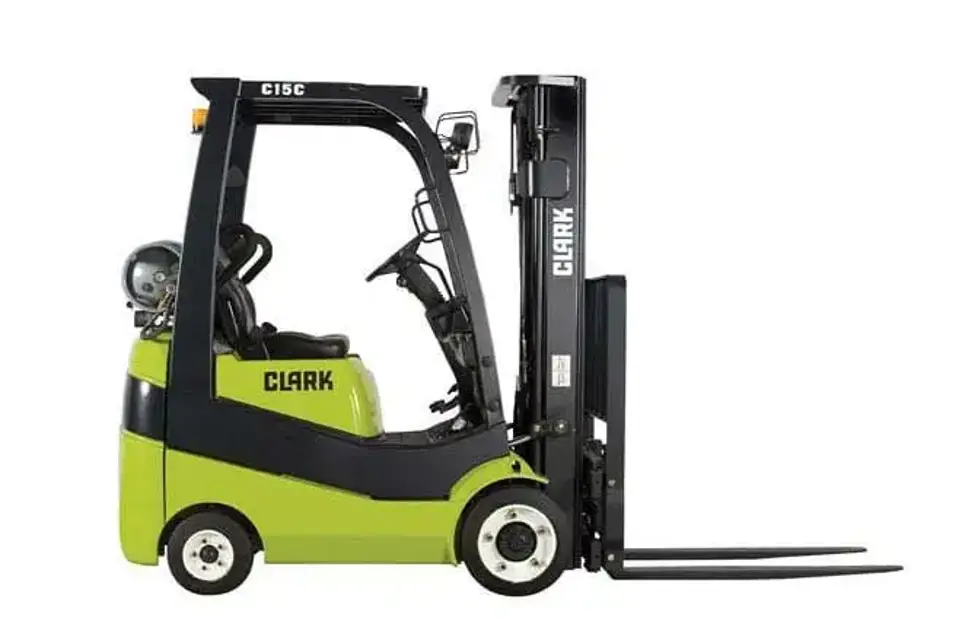

Clark Forklift C32CL

1. Close the shut-off valve of the LPG tank to be changed by turning the valve as far as possible clockwise. Let the engine run until it stops of its own accord. By doing this you will avoid the risk of liquefied gas spraying out from the hose (danger of frostbite) when you loosen the union.

3. Separate the hose from the LPG tank (left hand thread). Close the connection on the LPG-tank with the cap nut.

4. Slacken the strap holding the LPG tank and take away the empty LPG tank.

5. Replace the empty LPG tank with a full one. Check that the unions at the end of the hose and on the LPG tank are of the same type. Take care that you place the LPG tank in the correct position. The union for the hose must face downwards.

6. Secure the LPG tank strap and connect the hose.

7. Open the shut-off valve of the LPG tank slowly by turning it anticlockwise as far as it will go. Check the LPG system for tightness.

Extraordinary inspection of the LPG system

Clean or replace engine air filter (Diesel)

Replace hydraulic sump oil filter and hydraulic tank air breather

Exchange diaphragms, seals and valves in the LPG system

Check drive axle mounting and fasteners

Replace fuel filter element (GAS/LPG)

Check valve clearance and set if necessary (diesel engine)

Check that crankcase ventilation is free

Replace transmission oil GTS20-30, C40-80

Replace transmission oil filter C15-35, GTS20-30

• Every 1000 operational hours, or once annually, the filter elememts in the liquid gas preliminary filter and in the shut-off valve must be renewed, as well as diaphragms, seals and valves.

• After each maintenance, the cap screws of the evaporator pressure regulator must be tightened with a torque of 4.1±0.3 Nm.

• Check the LPG system after every repair or service to make sure that it is free of leaks.

Engine air cleaner • Check the engine air cleaner for damage and contamination (excessive dirt buildup and clogging). Be sure that the air cleaner hose is securely connected (not loose or leaking). Fan or cone shaped dust deposits on tube or hose surfaces indicate a leak.

• Change or service the air cleaner element every 2000 operating hours for LPG/Gas engine, every 1000 operating hours for Diesel engine depending upon your application.

• Service intervals may also be determined by the air restriction indicator.

• Clean the air filter housing thoroughly before fitting the filter.

• Do not open the air filter housing to check the filter element.

Clean or replace engine air filter (GAS/LPG)

Replace transmission oil C15-35

Check / lubricate steer axle wheel bearings

Replace hydraulic sump oil and hydraulic oil filter

Check injection nozzles and injection timing (diesel engine)

Sign off on the forklift maintenance

• In order to be able to evaluate whether a liquefied petroleum gas system is in an operationally safe state, it is necessary to have had a proper course of training in these systems.

• In addition it is necessary to have a good knowledge of the relevant official Work Protection Regulation and Accident Prevention Regulations. For this reason, LPG units may only be repaired and maintained by trained personnel. Contact your CLARK dealer when maintenance or repairs need to be carry out.

• The complete liquified petroleum gas system must be checked regularly (weekly) to see that it is in an operationally safe state.

• Special attention must be paid to checking that the system is not leaking. Check hoses, connections and assembly groups with soapy water, nekal solution or a suitable leak indicator spray.

• Use of open flames, smoking and use of hot objects is strictly prohibited.

Change the engine oil / Replace engine oil filter
