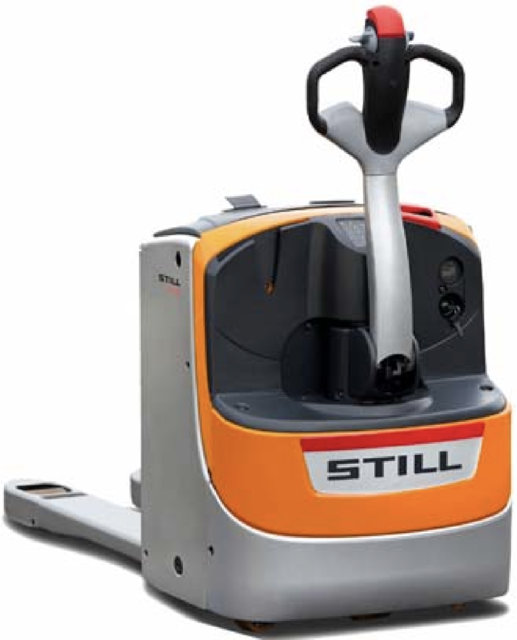

Still Electric Pallet Truck EXU-18

Create an account to install this asset package.

Maintenance Plans for Still Electric Pallet Truck Model EXU-18

Integrate maintenance plans directly into your work orders in MaintainX.

1000 Hourly / 1 Yearly Electrical Equipment Check

Check that the cable insulation is undamaged and that there are no signs of overheating at the connections

Check that the '+' and '-' output terminals are not sulfated (presence of white salt)

Check the condition of the power outlet contacts and the presence of the keying pin

Check the condition of the locking tab on the battery connector

CAUTION! The points mentioned above can cause serious incidents. In the event of a fault, please contact the After-Sales Service;

Sign off on the electrical equipment check

Run this procedure

3000 Hourly Hydraulic System Draining

Draining the circuit

Lower the load arms to the ground to eliminate pressure in the hydraulic circuit

Switch off the ignition and unplug the battery connector

Disconnect the power supply to the solenoid valve (3)

Disconnect the cylinder supply hose (1)

Remove the 2 screws (2) that hold the upper support (angle bracket) in place

Lift out the hydraulic unit

Remove the unit's upper support and the filler tube/breather

Unscrew the tank's mounting clip

Run this procedure

1000 Hourly / 1 Yearly Electric Pallet Truck Check

Check the error codes (using the diagnostic tool)

Check that the cables and bundling are in good condition

Check the hydraulic system for leaks

Check the general condition of the forks and the chassis

Run this procedure

1 Weekly Electrolyte Level Check

CAUTION! Before commencing work, unplug the battery connector by pulling the emergency stop handle

Battery connector unplugged

This check and any topping up required should be carried out every week, after charging an open lead battery only

Key switch turned off

Cover opened and battery connector disconnected

Check the level, which should be up to the base of the plug, slightly above the splash guard

Demineralised water added to top up cells with a low water level

Plugs refitted

Sign off on the electrolyte level check

Run this procedure

1 Weekly Electrolyte Density Check

CAUTION! Only top up with demineralised water. Never top up before charging (risk of overflow). Do not overfill the cells

NOTE! For more information, refer to the instructions supplied with the battery

NOTE! Measuring the density gives an accurate indication of the charging status of each cell in an open lead battery only. This measurement can be taken before or after charging

Minimum density of an 80% discharged battery: 1.14

High density, battery 100% charged: 1.29 to 1.32 (depending on make)

We recommend a reading every 1 or 2 weeks

Enter the values read in your battery monitoring logbook

Lift the cover over each cell plug as described above

Record the specific gravity of each cell with the hydrometer

Run this procedure
