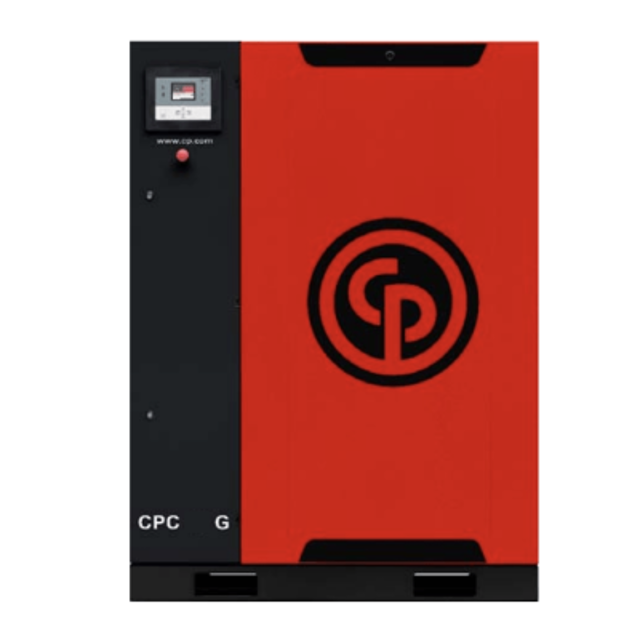

Chicago Pneumatic Air Compressor CPC 40

Create an account to install this asset package.

Maintenance Plans for Chicago Pneumatic Air Compressor Model CPC 40

Integrate maintenance plans directly into your work orders in MaintainX.

4000 Hourly Air Compressor Maintenance

Warning: Operations that require skilled personnel

Clean the finned surface of the air-oil cooler

Change the oil separating filter

Before carrying out any maintenance it is mandatory to stop the compressor and disconnect it from the main power.

Maintenance on the electrical components can only be performed by qualified technicians or authorized factory personnel.

Caution: When the compressed air cools, part of the moisture sucked in by the compressor condenses.

Check regularly that the condensate drains are operating properly

Changing the oil separation filter

Before carrying out any maintenance the compressor must be stopped, disconnect the compressor from the main power and from the compressed air distribution network, check that the compressor is not under pressure.

Run this procedure

2000 Hourly Air Compressor Maintenance

Warning: Stop the compressor and disconnect it from the main power before carrying out any maintenance.

Maintenance on the electrical components can only be performed by qualified technicians or authorized factory personnel.

Change the oil filter

Change the suction filter

Caution: When the compressed air cools, part of the moisture sucked in by the compressor condenses.

To protect the dryer against the risk of an ice plug forming, it is essential to check regularly that the condensate drains are operating properly.

Check the compressed air storage reservoir

Check the filters

Drain type

Run this procedure

8000 Hourly Air Compressor Maintenance

OPERATIONS THAT REQUIRE SKILLED PERSONNEL

BEFORE CARRYING OUT ANY MAINTENANCE IT IS MANDATORY TO STOP THE COMPRESSOR AND DISCONNECT IT FROM THE MAIN POWER.

MAINTENANCE ON THE ELECTRICAL COMPONENTS CAN ONLY BE PERFORMED BY QUALIFIED TECHNICIANS OR AUTHORIZED FACTORY PERSONNEL.

CAUTION

Check that the condensate drains are operating properly

CHANGING THE OIL

BEFORE CARRYING OUT ANY MAINTENANCE IT IS MANDATORY TO STOP THE COMPRESSOR AND DISCONNECT IT FROM THE MAIN POWER AND FROM THE COMPRESSED AIR DISTRIBUTION NETWORK.

Drain the old oil out of the compressor

Fill the oil tank to the MAX level

Run this procedure

50 Hourly Air Compressor Maintenance

OPERATIONS THAT MAY BE CARRIED OUT BY THE USER:

Drain condensate from the SUMP TANK

Check the oil level

Clean the filtering panel.

BEFORE CARRYING OUT ANY MAINTENANCE IT IS MANDATORY TO STOP THE COMPRESSOR AND DISCONNECT IT FROM THE MAIN POWER.

MAINTENANCE ON THE ELECTRICAL COMPONENTS CAN ONLY BE PERFORMED BY QUALIFIED TECHNICIANS OR AUTHORIZED FACTORY PERSONNEL.

CAUTION

When the compressed air cools, part of the moisture sucked in by the compressor condenses. In order to protect the dryer against the risk of an ice plug forming, it is essential to check regularly that the condensate drains are operating properly :

On the compressed air storage reservoir and on the filters :

Run this procedure

500 Hourly Air Compressor Maintenance

Warning: Before carrying out any maintenance it is mandatory to stop the compressor and disconnect it from the main power.

Maintenance on the electrical components can only be performed by qualified technicians or authorized factory personnel.

Caution: When the compressed air cools, part of the moisture sucked in by the compressor condenses.

Check that the condensate drains are operating properly

Cleaning the Suction Filter or Changing the Filter

Press the “STOP” button

Switch off the compressor.

Turn off main power and lockout disconnect

Remove the side maintenance panel using the supplied key.
