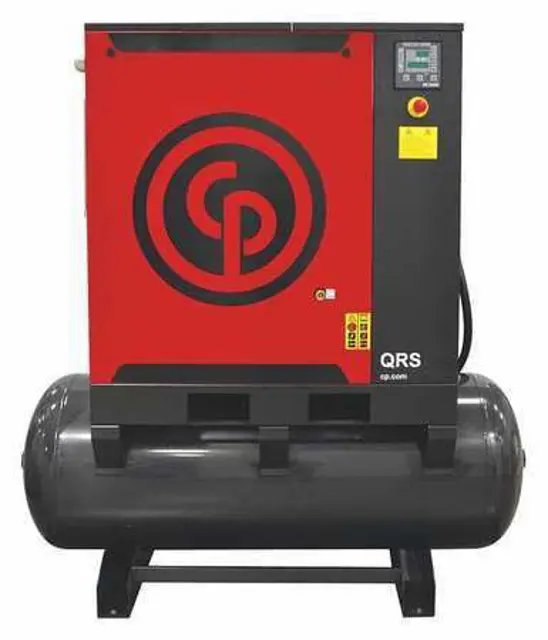

Chicago Pneumatic Air Compressor QRS 20

Warning: This maintenance check requires trained personnel with PPE!

Control cleaning lubrication check

Renovation of the housing using the suction housing kit

Sign off on the air compressor maintenance

Oil change, oil refill with recommended oil

The recommended oil used for the first compressor fill up is a mineral oil with the following properties :

THE FIRST OIL CHANGE MUST BE CARRIED OUT AFTER THE FIRST 500 HOURS OPERATION.

Using a synthetic oil for compressors is also acceptable and means less frequent oil changes: please speak to us about the compatibility and oil change methodes.

The oil change and the replacement of oil filter must be carried out when the indication is seen on the electronic controller and when the corresponding time counter reaches "0".

Drain the compressor when warm. In order to do this, stop it and make sure you disconnect the electric supply and close the compressor outlet valve. Loose the filling plug by one turn to depressurise the receiver in case of component failure. Open the bleeding valve and drain it. Do not forget to close the valve after it has been drained.

After maintenance, a reset has to be done on the counter which indicates the number of remaining hours before the next oil change see the specific notice on the electronic controller.

Renovation of the housing. Use the suction housing kit.

Check the cleanliness of the oil return pipe and the state of the seal

• Dismantle the complete oil return check valve.

• Lift the oil stop valve pipe.

Draining cock: G - Draining condensation water

Draining of condensates in the oil circuit

Condensates in the oil circuit drained?

Enter the number of hours since the CP Compressors has been shut down

Oil change tap opened slowly and water escaped?

Valve closed immediately when oil appeared to avoid any loss?

Oil level: Check and top up if necessary

First oil change after 500 hours operation

Using synthetic oil for compressors?

Oil change and oil filter replacement when indication is seen on the electronic controller and time counter reaches 0

Reset the counter after maintenance
