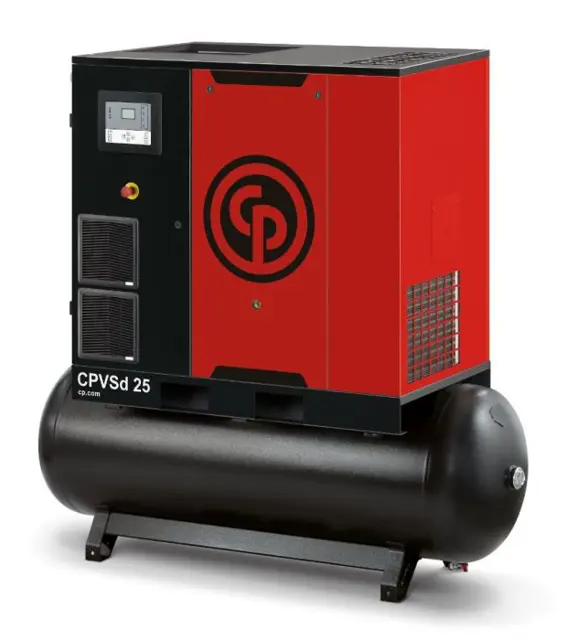

Chicago Pneumatic Air Compressor CPVS 25

The air filter is a dry, encapsulated type. In standard conditions of use, change the cartridge every 2 000hrs. This can be done through an easy access from the front panel. Check the cleanliness of the filter every week and change it if necessary.

If you do not replace the filtering element when needed, permanent dirt build-up will result. This reduces the air inflow to the compressor and could damage the oil separator and the compressor.

Enter the viscosity of the oil at 104 °F

Enter the viscosity index of the oil

Check the oil for the following additives

NOTE: The first oil change must be carried out after the first 500 hours operation.

Oil Change and Filter Replacement

Is the indication seen on the electronic controller?

Air / Oil cooler and Final coolant

Blowing of cooling elements and Cleaning

The aluminium oil and air cooler is a vital part in the CP Compressors system. Please take care of this element. To prevent the nest of tubes from being deformed or damaged, when assembling or disassembling the cooler unions and hoses, the cooler sleeves' must be kept rotating by means of a wrench.

The outer surface of the nest of tubes must always be kept clean in order to enable proper heat transfer. In the event of a leak, the source of the leak must be detected. In order to do this:

- Look for leaks using conventional means (soap solution, ...).

Enter the viscosity of the oil at 104 °F

Enter the viscosity index of the oil

Check the oil for the following additives

THE FIRST OIL CHANGE MUST BE CARRIED OUT AFTER THE FIRST 500 HOURS OPERATION.

Is synthetic oil being used for the compressor?

The oil change and the replacement of oil filter must be carried out when the indication is seen on the electronic controller and when the corresponding time counter reaches '0'.

Was the compressor drained when warm?

Was the electric supply disconnected and the compressor outlet valve closed?

Draining cock: G - Draining condensation water

Draining of condensates in the oil circuit

Condensates in the oil circuit drained?

Enter the number of hours since the CP Compressors has been shut down

Oil change tap opened slowly and water escaped?

Valve closed immediately when oil appeared to avoid any loss?

Oil level: Check and top up if necessary
