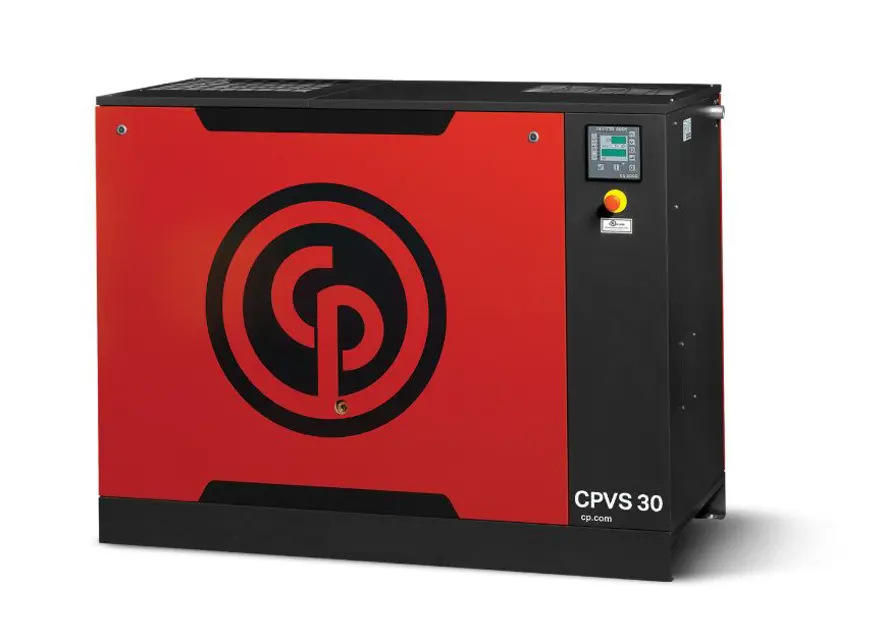

Chicago Pneumatic Air Compressor CPVS 30

Draining cock: G - Draining condensation water

Draining of condensates in the oil circuit

Condensates in the oil circuit drained?

Enter the number of hours since the CP Compressors has been shut down

Oil change tap opened slowly and water escaped?

Valve closed immediately when oil appeared to avoid any loss?

Refilled with oil if necessary?

Oil level: Check and top up if necessary

Enter the oil level in the tank

Check the additives present in the oil

The air filter is a dry, encapsulated type. In standard conditions of use, change the cartridge every 2 000hrs. This can be done through an easy access from the front panel. Check the cleanliness of the filter every week and change it if necessary.

If you do not replace the filtering element when needed, permanent dirt build-up will result. This reduces the air inflow to the compressor and could damage the oil separator and the compressor.

Enter the viscosity of the oil at 104 °F

Enter the viscosity index of the oil

Check the oil for the following additives

THE FIRST OIL CHANGE MUST BE CARRIED OUT AFTER THE FIRST 500 HOURS OPERATION.

Is synthetic oil used for compressors?

The oil change and the replacement of oil filter must be carried out when the indication is seen on the electronic controller and when the corresponding time counter reaches "0".

Drain the compressor when warm. In order to do this, stop it and make sure you disconnect the electric supply and close the compressor outlet valve. Loose the filling plug by one turn to depressurise the receiver in case of component failure. Open the bleeding valve and drain it. Do not forget to close the valve after it has been drained.

After maintenance, a reset has to be done on the counter which indicates the number of remaining hours before the next oil change see the specific notice on the electronic controller.

Renovation of the housing. Use the suction housing kit.
