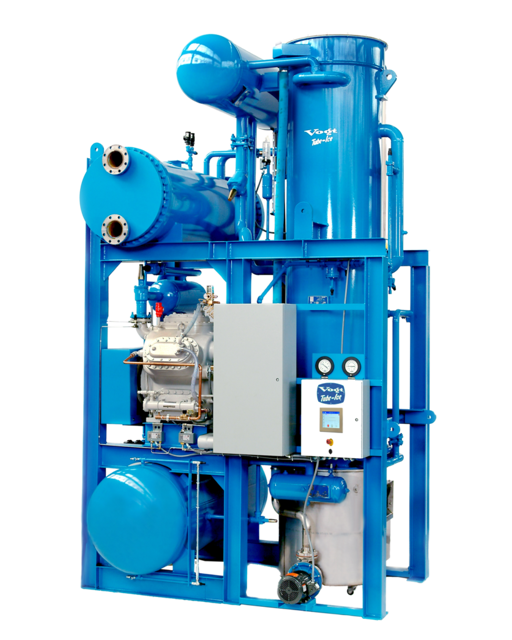

Vogt Ice Tube-Ice Machine P34 50Hz 1 1/4"

Remove the belt guard and loosen motor hold-down bolts

Move the motor and sheave closer to the compressor until there is enough slack to remove the old belts

Clean the sheave groove if necessary with non-flammable, non-toxic degreasing agent or commercial detergent

Install new belts by rotating the belt and sheaves to obtain seating in the grooves

Note any unused belt grooves and ensure belts are slack on the same side of the drive before tightening

Check/adjust make-up water valve

Disconnect and lock-out all power

Remove the water tank assembly to access the cutter assembly

Remove the 3/8” cap screws holding the blades to the cutter plate

Install the cap screws and washers without tightening

Control Calibration and Operation

Check calibration and operation of all controls

Check cooling tower spray nozzles for scaling and algae

Check pump suction screen for scaling and algae

Freezer and Water Tank Inspection

Check water distributors in freezer for scale accumulation

Check water tank for solids to be removed

Refer to the space diagrams to ensure ample room for removing the condenser heads and using the mechanical cleaning equipment.

Order replacement cover gaskets for reassembly.

Disconnect and lock-out power to the ice machine and auxiliary equipment.

Disconnect water piping and drain the condenser.

Loosen the cover (heads) hex nuts and separate the covers from the condenser end to drain additional water.

Remove the heads stud bolts and gasket completely.
