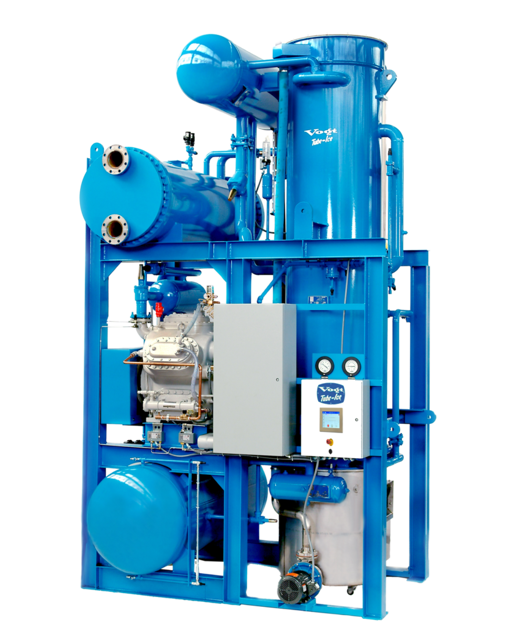

Vogt Ice Tube-Ice Machine P34 60Hz 1 1/2"

Follow all lock-out and tag-out procedures before servicing any electrical equipment

Check for any evidence of oil leakage

Check the oil level at the pipe plug in the side of the gear housing

Is the oil level correct (oil runs out of the hole when the plug is taken out)?

Add oil through one of the top plugged holes if the oil level is low

Check the oil level in the sight glass

Is the oil level below 1/4 of the sight glass?

Add two quarts of 300 S SU viscosity refrigeration oil if needed

Has the crankcase heater been energized for at least four hours?

Record the oil pressure gauge reading

Check all belts for proper tension

Check for leaks after 400 hours or four weeks of operation

Record the 'ice out' time in seconds

Enter the refrigerant operation level

Check frost pattern on freezer shell and oil trap

Inspection of Water Distributors

Is the view through the plastic freezer cover clear for inspection?

Is there irregularity in the ice diameter, opacity, or decrease in ice capacity and quality?

Remove the nuts and retaining ring sections.

Checking Distributor Components

Ensure the following components are in place and functional
