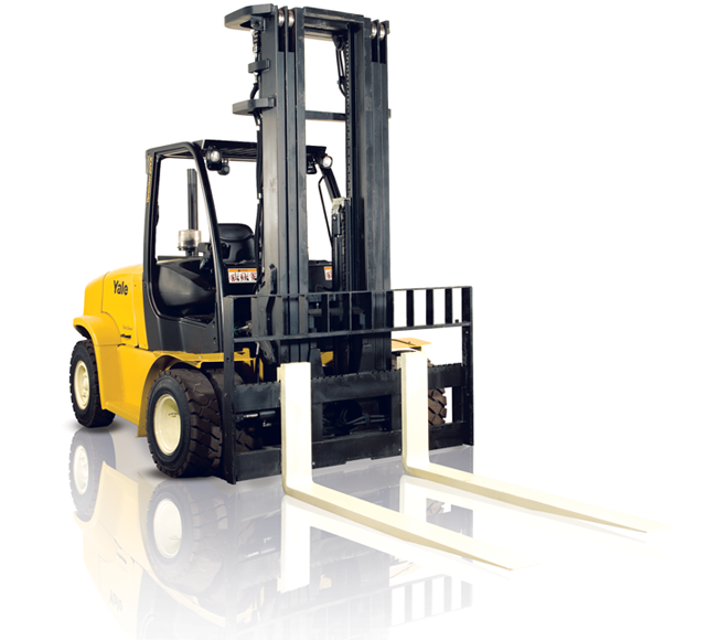

Hyster-Yale Lift Truck GDP080VXNTAV098

Raise the hood and remove the right rear side panel

Safety precautions for using compressed air

Ensure the path of the compressed air is away from all personnel

Direct air pressure away from the filter element

Remove dirt and debris using compressed air

Check for oil or dirt accumulation

Check if oil has accumulated in the cavity or on the breather

Check if dirt has accumulated at the breather passages at the bottom of the breather

Ensure the lift truck is parked on a level surface

Turn off the engine and remove the key

Gather necessary tools and materials (multipurpose grease, grease gun)

Locate and identify all lubrication fittings

Clean each lubrication fitting before applying grease

Apply multipurpose grease to each fitting using a grease gun

Remove and Replace for Lift Trucks Equipped with GFI

Raise the hood and disconnect the negative terminal of the battery

Remove and discard the fuel filter

Refer to Figure 73 for guidance

Install the new fuel filter and tighten the clamp screws to 2.45 to 2.77 N·m (22 to 25 lbf in.)

Connect the negative terminal of the battery and close the hood

Remove and Replace for Lift Trucks Equipped with PSI

Raise the hood and disconnect the negative terminal of the battery

Remove the hose clamps on the return tube and fuel filter

Lower the lift mechanism completely

Ensure no person is under a raised carriage

Ensure all parts of the mast are completely lowered and the engine is STOPPED before putting any part of your body in or through the lift mechanism

Do not attempt to correct the alignment of the fork tips by bending the forks or adding shims

Do not repair damaged forks by heating or welding; replace the forks as a set if either fork is damaged

Ensure lateral fork stops are in place before operating the forklift

Inspection of Mast and Carriage

Inspect welds on mast and carriage for cracks; Ensure cap screws and nuts are tight

Is the air flow restriction indicator light on the dash illuminated?

Has the manual air flow indicator button popped up?

Enter the number of hours since the last filter element replacement

Gently pull the filter element from the canister

Clean the inside surface of the canister with a clean, soft rag
