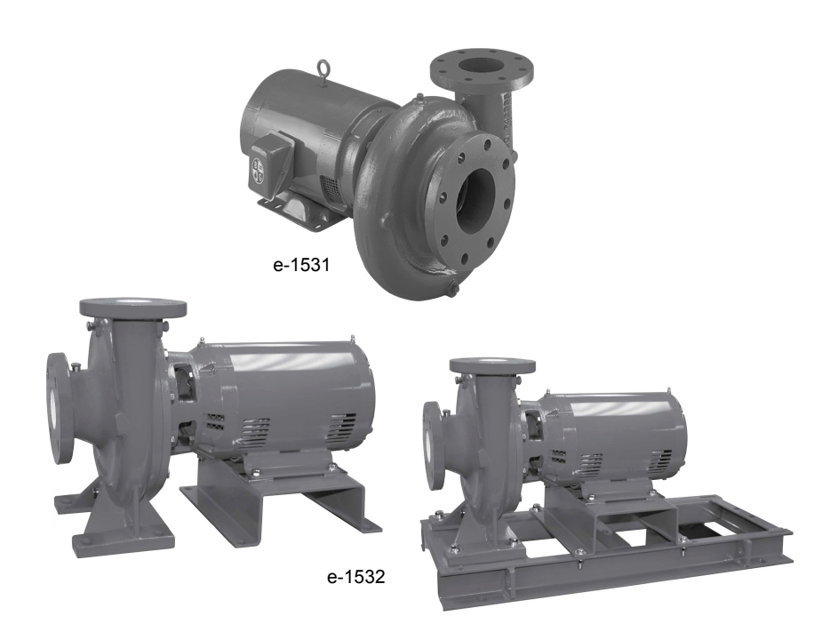

Xylem Pump E-1531 2A

Ensure all replacement parts are available before disassembly

Inspect pump parts according to pre-assembly topics

Replace any part that does not meet the required criteria

Clean pump parts in solvent to remove oil, grease, and dirt

Protect machined surfaces while cleaning parts

Replace or repair parts as required

1.2.2 Safety instruction decals / 5.3 Start the pump

Replace pump seal if leaks are found

Monitor the pump while it is operating

Check the pump for the following issues

Is the pump operating within normal levels?

Shut down the pump immediately if it exceeds normal levels

Describe any corrective actions taken if the pump was shut down

Ensure the pump is not running dry to prevent seal damage

5.6 Note on the packed pump operation

Enter leakage rate in drops per minute

Is temperature rise within 20°F (-7°C)?

Back off packing gland nuts or screws

Hand tighten gland against first packing ring

6.1 Bearing maintenance — Bearing lubrication schedule

Verify motor bearings require no initial lubrication

Refer to the motor manufacturer's recommendations for lubrication intervals and note them here

Has the motor been lubricated at the factory?

Store in a covered and dry location

Ensure the unit is free from heat, dirt, and vibrations

Rotate the shaft by hand several times

Treat bearing and machined surfaces for preservation

Refer to the drive unit manufacturer for long-term storage procedures
