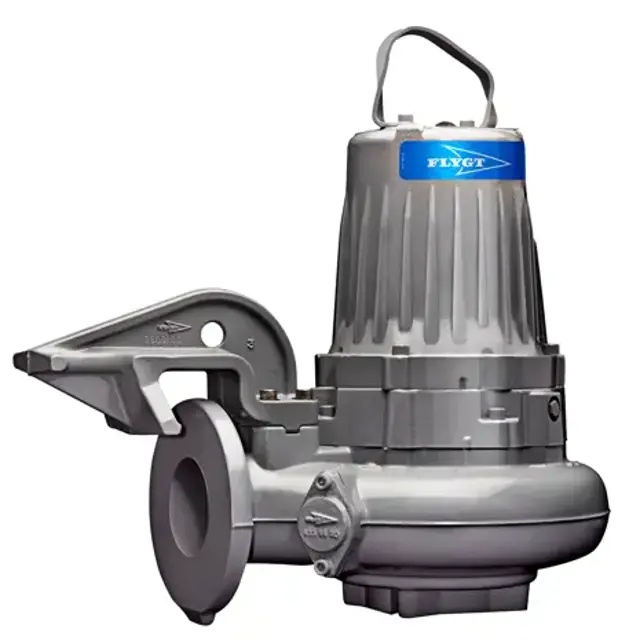

Xylem Pump Flygt 3102.920

Check that the connections to power are properly secured

Ensure electrical cabinets are clean and dry

Check the impeller clearance and adjust if necessary

Measure the resistance of the leakage sensor in the stator housing

Check insulation resistance between ground and phase lead

Conduct a phase-to-phase resistance check

Check for liquid in the stator housing

Check the mechanical seal unit, the O-rings, and the cable entry, if liquid was found

6.1 Precautions — Maintenance guidelines

Perform these tasks during maintenance and before reassembly

Ensure existing index markings are in line during reassembly

Insulation-test the reassembled drive unit

Test-run the reassembled pump before normal operation

Perform a ground (earth) continuity test after service

5.2 Estimate zinc anode replacement intervals

Record the current water temperature

Measure the current mass of the zinc anodes

Calculate the anode consumption rate

Select the remaining fraction for replacement

Calculate the actual replacement interval

Is the calculated replacement interval less than 1 year?

Describe any factors affecting the anode replacement interval

Verify replacement of key components

Replace support and main bearings
