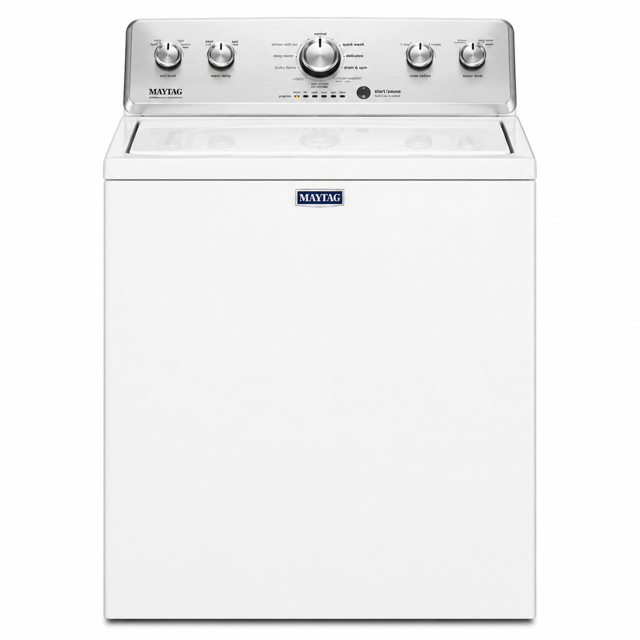

Maytag Washer HAV4657*

Ensure all necessary parts for the seal replacement are available

Verify that the spin bearing is not defective

Remove the bearing and seal housing to access the tub seal

Coat the mounting recess of the housings with silicone grease (part number 203959)

Ensure no grease comes in contact with the mating surfaces of the seal

Clean both seal mating surfaces with an alcohol saturated cloth

Verify that both seal mating surfaces are free of foreign matter

Disconnect the unit from the power source

Remove all wiring from the solenoid(s) being tested

Place the test leads across the terminals of the solenoid being tested and record the meter reading

Does the meter indicate continuity?

Enter the resistance reading of the coil (ohms)

Place one test lead on one terminal of the solenoid being tested, and the other lead on a suitable ground. Record the meter reading

Disconnect all wiring connections from the machine wiring harness to the motor starting switch

Does the motor run in one direction but not reverse?

If yes, describe the issue with the timer or wiring harness

Use a two conductor test cord with two female spade connector terminals on each conductor (tool number 038183)

Connect the spade connectors to terminals 1 and 4 on the starting switch

Disconnect the unit from the power source

Raise the top and open the clothes door

Remove the two screws securing the safety switch assembly to the underside of the top

Place test leads across the terminals at each end of switch

Is continuity NOT indicated when switch contacts are open?

Disconnect the unit from the power source

Remove the brake assembly to access the seal

Use a thin, flat bladed screwdriver to carefully pry the old seal out

Place the drive washer and the new seal over the seal protector

Remove the cone-shaped end from the seal protector tool

Slide the tool, drive washer, and new seal over the drive shaft up to the seal cavity
