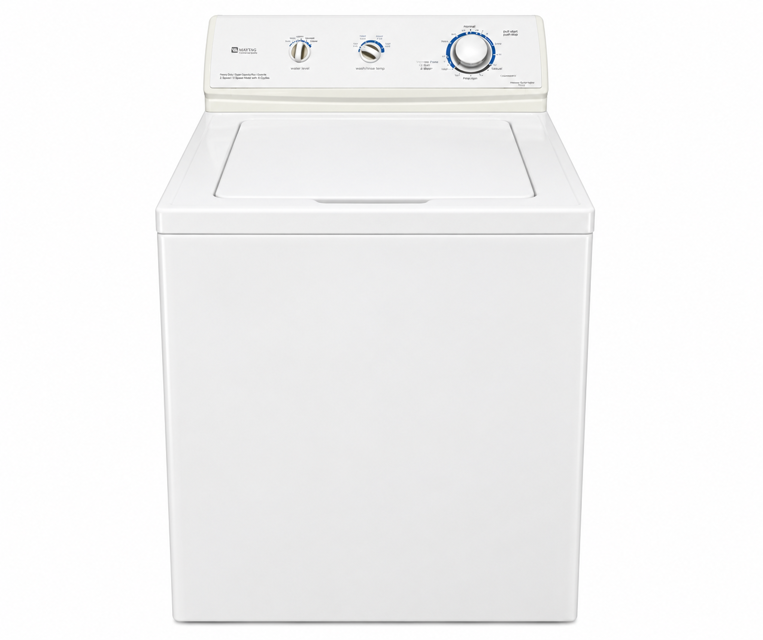

Maytag Washer PAV1000AW*

Create an account to install this asset package.

Maintenance Plans for Maytag Washer Model PAV1000AW*

Integrate maintenance plans directly into your work orders in MaintainX.

Washer Torque Testing

Pre-Test Preparation

Operate the washer in the agitation cycle with hot water for about two (2) minutes.

Operate the washer in a spin cycle for two (2) minutes.

Initial Spin Efficiency Test

Place a 3 1/2 pound weight, such as a bag of sand, in the washer basket.

Start the machine in the spin cycle.

Does the basket reach full spin with the weight?

Torque Test Procedures

Check the tub seal for drag or resistance.

Run this procedure

Washer Mixing Valve Testing

Preparation

Disconnect the unit from the power source

Remove all wiring from the solenoid(s) being tested

Testing Solenoid Continuity

Place the test leads across the terminals of the solenoid being tested. Record the meter reading.

Does the meter indicate continuity?

Enter the resistance reading from the ohmmeter

Is the resistance approximately 860 ohms?

Testing Solenoid Grounding

Run this procedure

Washer Water Level Switch Testing

Preparation

Ensure the washer is unplugged from the power source

Access the water level switch as detailed in Section 3 under Control Panel Disassembly

Testing with Ohmmeter

Check continuity across terminals 1-2 when the tub is empty

Is there continuity across terminals 1-2 when the tub is empty?

Check continuity across terminals 1-2 when the tub is filled as per the switch setting

Are terminals 1-2 open when the tub is filled?

Check continuity across terminals 1-3 when the tub is filled as per the switch setting

Run this procedure

Washer Oil Seal Replacement

Preparation

Disconnect the unit from the power source

Seal Removal

Remove the brake assembly to access the seal

Use a thin, flat bladed screwdriver to carefully pry the old seal out

Seal Installation

Place the drive washer and the new seal over the seal protector

Remove the cone-shaped end from the seal protector tool

Slide the tool, drive washer, and new seal over the drive shaft up to the seal cavity

Run this procedure

Motor Switch Testing

Preparation

Unplug the power cord

Disconnect all wiring connections from the machine wiring harness to the motor starting switch

Motor Switch Testing

Test the motor components

Connect a continuity tester between terminal 4 on the switch and the unmarked single terminal on the opposite side. Check for closed circuit indication.

Depress the switch button and check for open circuit indication between terminal 4 and the unmarked single terminal.

Check continuity between terminals 5 and 3 for closed circuit indication.

Connect the tester between terminal 5 and the unmarked single terminal next to terminal 3, depress the button, and check for continuity indication.

Run this procedure
