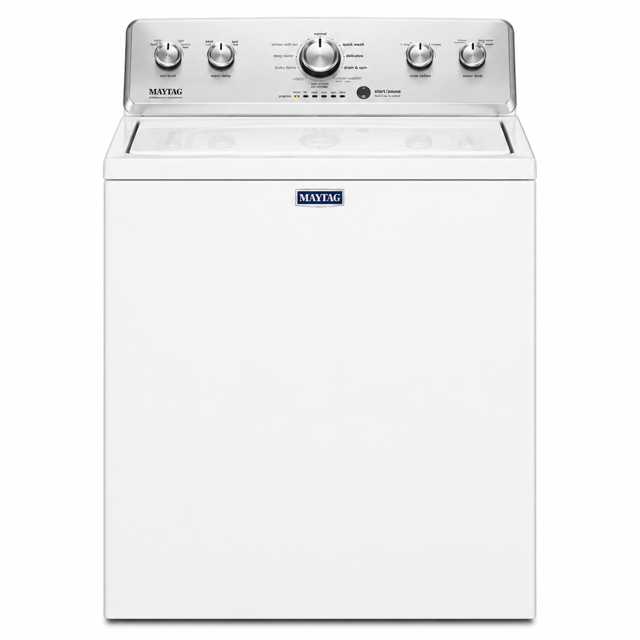

Maytag Washer HAV2557*

Disconnect the unit from the power source

Tip unit and remove the drive belt

Disconnect the inlet hoses from the water mixing valve

Remove the access panel from the cabinet rear and disconnect the discharge hose from the pump outlet

Disconnect lower wiring from the cabinet rear and remove pressure switch hose from tub air bell

Remove the screws attaching the cabinet to the base

Push the front of the cabinet slightly and push or pull it off the rear of the base

Disconnect the unit from the power source

Raise the top and open the clothes door

Remove the two screws securing the safety switch assembly to the underside of the top

Place test leads across the terminals at each end of switch

Are the switch contacts open and continuity NOT indicated?

Disconnect all wiring connections from the machine wiring harness to the motor starting switch

Read from the P to P terminals at the motor switch

Did the overload protector open repeatedly?

If Overload Protector Opens Repeatedly

Disconnect the unit from the power source

Remove all wiring from the solenoid(s) being tested

Place the test leads across the terminals of the solenoid being tested. Record the meter reading.

Does the meter indicate continuity?

Enter the resistance reading from the ohmmeter

Is the resistance approximately 860 ohms?

Disconnect the unit from the power source

Remove the bearing and seal housing and the tub support

Remove the seal body from the housing cavity

Press the spin bearing out of the cavity from the opposite side of the housing

Install the replacement bearing into the housing cavity

Check that all parts are in place

Test the washer for proper operation

Describe any issues encountered during the replacement
