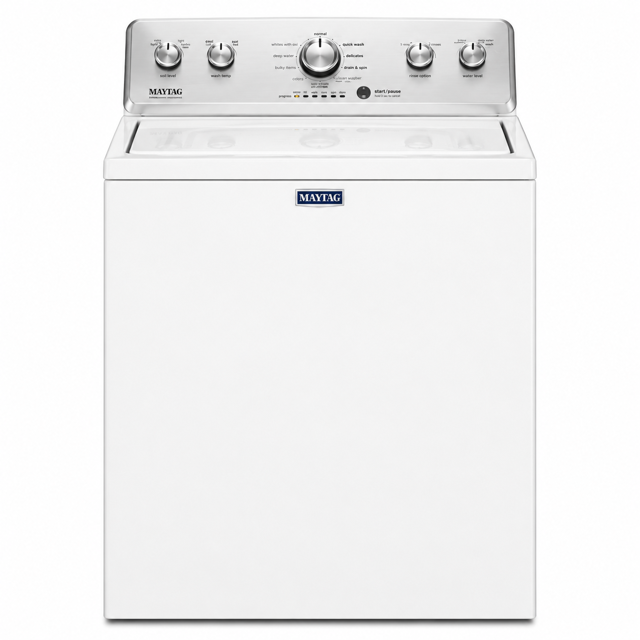

Maytag Washer HAV2360*

Disconnect the unit from the power source

Remove the transmission from the washer cabinet

Remove the cams, drive pulley, and brake assembly

Remove the three screws securing the suspension housing to the lower bearing assembly

Slip the pipe and cap assembly over the drive shaft and up against the drive tube

Use a puller with at least a 3 1/2 inch spread to remove the lower bearing assembly

Disconnect all wiring connections from the machine wiring harness to the motor starting switch

Connect a continuity tester between terminal 4 and the unmarked single terminal on the opposite side. Does the tester indicate a closed circuit?

Depress the switch button. Does the tester indicate an open circuit?

Check continuity between terminals 5 and 3. Does the tester indicate a closed circuit?

Connect the tester between terminal 5 and the unmarked single terminal next to terminal 3 and depress the button. Does the tester indicate continuity?

Disconnect the unit from the power source

Remove the screws securing the safety switch assembly

Place test leads across the terminals at each end of switch

Is continuity indicated when switch contacts are open?

Depress the switch button while test leads are across the terminals

Disconnect the unit from the power source

Remove all wiring from the solenoid(s) being tested

Place the test leads across the terminals of the solenoid being tested. Record the meter reading.

Does the meter indicate continuity?

Place one test lead on one terminal of the solenoid being tested, and place the other lead on a suitable ground. Record the meter reading.

Does the meter indicate no continuity?

Disconnect the unit from the power source

Tip unit and remove the drive belt

Disconnect the inlet hoses from the water mixing valve

Remove the access panel from the cabinet rear and disconnect the discharge hose from the pump outlet

Disconnect lower wiring from the cabinet rear and remove pressure switch hose from tub air bell

Remove the screws attaching the cabinet to the base

Push the front of the cabinet slightly and push or pull it off the rear of the base
