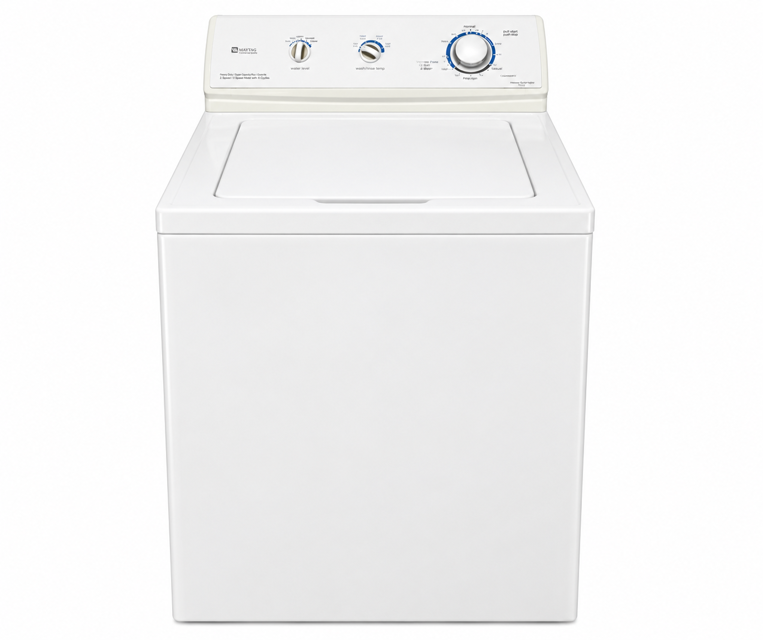

Maytag Washer PAV5158*

Create an account to install this asset package.

Maintenance Plans for Maytag Washer Model PAV5158*

Integrate maintenance plans directly into your work orders in MaintainX.

Motor Overload Protector Testing

Preparation

Unplug the power cord

Disconnect all wiring connections from the machine wiring harness to the motor starting switch

Testing the Overload Protector

Read from the P to P terminals at the motor switch

Does the overload protector open repeatedly?

If Overload Protector Opens Repeatedly

Check for potential issues

Post Testing

Run this procedure

Washer Tub Seal Replacement

Preparation

Ensure all necessary parts for the seal replacement are available

Check if the spin bearing needs replacement

Remove the bearing and seal housing if necessary

Face Seal Installation

Coat the mounting recess of the housings with silicone grease (part number 203959)

Ensure no grease comes in contact with the mating surfaces of the seal

Clean both seal mating surfaces with an alcohol saturated cloth

Verify both seal mating surfaces are free of foreign matter

Run this procedure

Washer Spin Bearing Replacement

Disconnect the unit from the power source

Remove the bearing and seal housing and the tub support

Remove the seal body from the housing cavity

Press the spin bearing out of the cavity from the opposite side of the housing

Install the replacement bearing into the housing cavity

Post replacement inspection

Check that all parts are securely reassembled

Test the washer for proper operation

Cleanup and finalization

Run this procedure

Motor Switch Testing

Preparation

Unplug the power cord

Disconnect all wiring connections from the machine wiring harness to the motor starting switch

Motor Switch Testing

Connect a continuity tester between terminal 4 on the switch and the unmarked single terminal toward the back of the switch on the opposite side. Check for a closed circuit.

Depress the switch button and check for an open circuit between terminal 4 and the unmarked single terminal.

Check continuity between terminals 5 and 3 for a closed circuit.

Connect the tester between terminal 5 and the unmarked single terminal next to terminal 3, depress the button, and check for continuity.

Run this procedure

Washer Water Level Switch Testing

Preparation

Ensure the washer is unplugged from the power source

Access the water level switch as detailed in Section 3 under Control Panel Disassembly

Testing with Ohmmeter

Check continuity across terminals 1-2 with the tub empty using an ohmmeter

Check that terminals 1-2 are open and terminals 1-3 indicate continuity when the tub is filled as per the switch setting

Post-Testing
