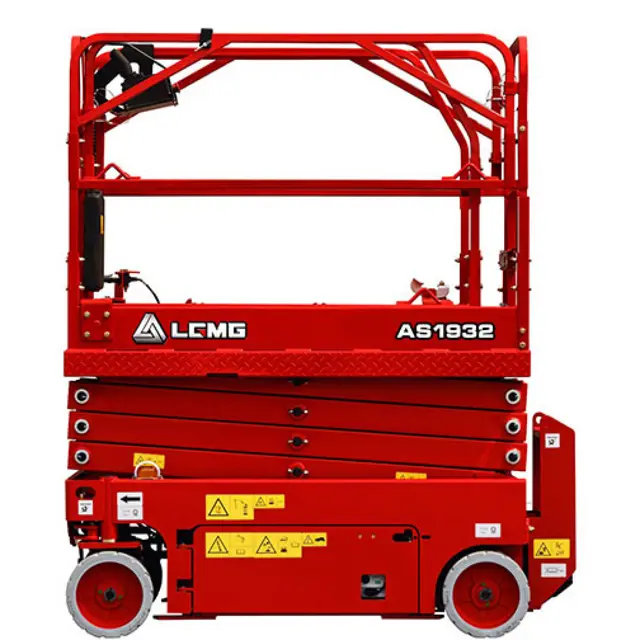

Lingong Heavy Machinery Work Platform AS1932

Ensure the battery posts are secure and not corroded

Check the battery is secure and not damaged

Check that all buttons/switches on the PCU panel function normally

Ensure the PCU emergency stop switch is secure

Check if all switches operate properly

Pull the Emergency Stop Switch out to the 'ON' position

Push the Enable Switch and activate a function

Did the horn sound as expected?

Describe any issues encountered during the test

Platform Elevation and Pothole Guard Deployment

Lift the platform to the specified height

Did the pothole guards deploy automatically?

Press one side of the pothole guard

Press the other side of the pothole guard

Did the pothole guard remain immobile?

Platform Lowering and Pothole Guard Stowage

Check for loose or damaged bolts or abnormal noise

Check if any circlip or washer on fork arms are damaged, worn, or missing

Check if the emergency lowering system operates properly

Check if the platform, scissor stack arm, and chassis are deformed or have broken welds

Check if the paint is excessively chipped or peeling off

Check if the decals and safety signs are correct and legible

Check if the manuals are with the machine

Machine performance and limit switches operate properly

Ensure the platform is completely lowered

Drive two wheels on the same side of the machine up on a 1.37×7.9in (3.5×20cm) block

Lift the platform to the specified height from the table

Did the platform stop moving and the tilt alarm sound at 120 times per minute?

Is the drive function disabled in both forward and reverse directions?
