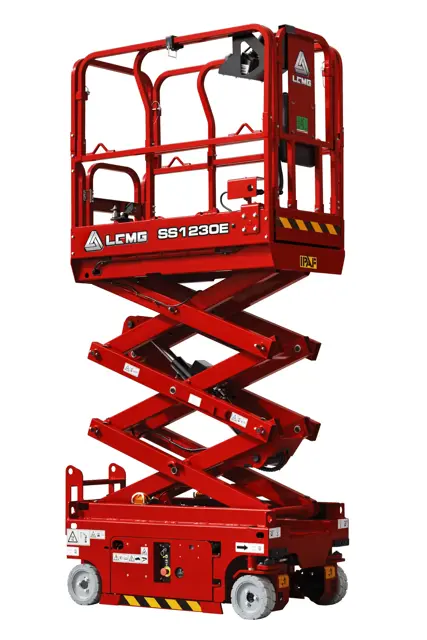

Lingong Heavy Machinery Work Platform SS1230E

Hydraulic System Pressure Checks

Is the pressure of the hydraulic system normal?

Is the lift system hydraulic pressure normal?

Is the steering system hydraulic pressure normal?

Is the driving system hydraulic pressure normal?

Hydraulic System Integrity Checks

Check for loose or damaged components

Pre-Operation Inspection Responsibilities

Operator is responsible for pre-operation inspection and routine maintenance.

Perform visual inspection daily before each work shift.

Use inspection to confirm if routine maintenance is required.

Pre-Operation Inspection Process

Ensure the manual is complete, legible, and stored in the manual box on the platform.

Ensure all labels are clear, readable, and appropriately placed.

Check for hydraulic oil leakage and proper oil level.

Check for battery fluid leakage and suitable liquid level. Add distilled water if required.

Press the drive function selector switch

Check if the drive function indicator lights up

Press the enable switch on the control handle

Press the rocker switch on top of control handle according to the direction indicated by leftward arrows on the control panel

Verify if the machine turns left

Press the rocker switch on top of the control handle according to the direction indicated by rightward arrows on the control panel

Verify if the machine turns right

Pull the Emergency Stop Switch out to the “ON” position

Push the Enable Switch and activate a function

Did the horn sound as expected?

Describe any issues encountered during the test

Activate emergency lowering control
