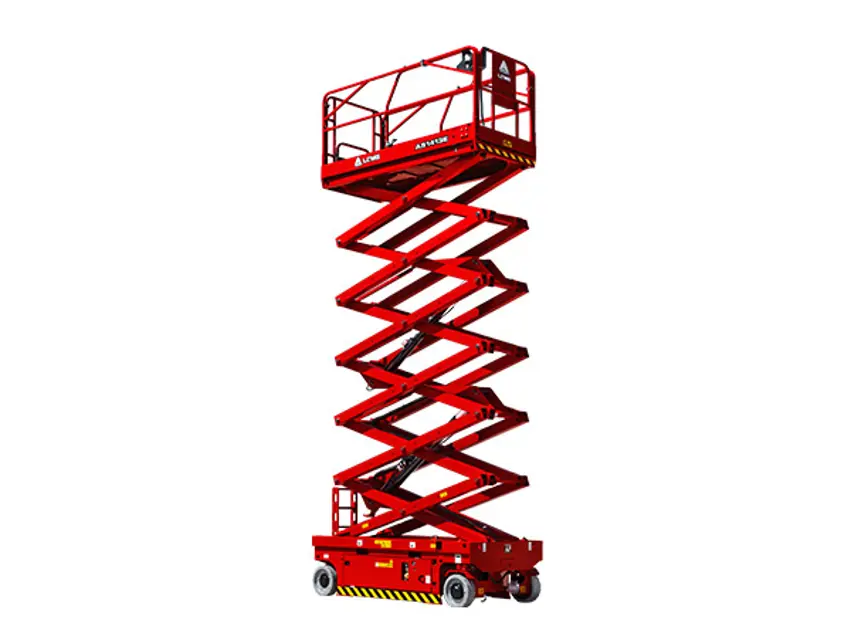

Lingong Heavy Machinery Work Platform AS4650E

Create an account to install this asset package.

Maintenance Plans for Lingong Heavy Machinery Work Platform Model AS4650E

Integrate maintenance plans directly into your work orders in MaintainX.

Driving Function Testing

Lift Function Testing

Press the lift function button and check if the indicator lamp lights up.

Press and hold the enable switch to lift the platform to the specified height.

Are the pothole guards deployed after lifting the platform?

Drive Function Testing

Press the drive function selector button and check if the indicator light lights up.

Press the enable switch on the control handle and move the control handle fully forward.

Measure the drive speed of the platform when elevated.

Is the drive speed of the platform not greater than 0.5mph (0.8km/h) when elevated?

Run this procedure

Horn Testing

Preparation

Pull the Emergency Stop Switch out to the 'ON' position

Push the Enable Switch and activate a function

Horn Activation

Press the horn button

Did the horn sound as expected?

Post-Test

Describe any issues encountered during the test

Technician's signature

Run this procedure

1 Daily Work Platform Check

Check for loose or damaged bolts or abnormal noise

Check if any circlip or washer on fork arms are damaged, worn, or missing

Check if the emergency lowering system operates properly

Check if the platform, scissor stack arm, and chassis are deformed or have broken welds

Check if the paint is excessively chipped or peeling off

Check if the decals and safety signs are correct and legible

Check if the manuals are with the machine

Check if machine performance and limit switches operate properly

Run this procedure

Workstation Inspection

Warning

Operation is forbidden unless the following safe operating principles of the machine are understood and performed.

Notice

The workstation inspection must be performed and proper operating procedures understood before the next step.

Function test has been performed

Machine is used as described in this manual

General Information

Using the Workstation Inspection procedures, the operator can determine if the safe operation of machine is possible from the workstation. The operator shall carry out this process before operating the machine from the workstation.

Understanding the hazards of the workstation are the responsibilities of the operator. Avoid these hazards while moving, delivering, or operating the machine.

Run this procedure

Driving And Braking Function Testing

Press the enable switch on the control handle

Test forward movement

Push the control handle forward until the machine moves

Return the handle to the center position

Did the machine move forward and then stop?

Test backward movement

Push the control handle backward until the machine moves

Return the handle to the center position

Did the machine move backward and then stop?

Run this procedure
