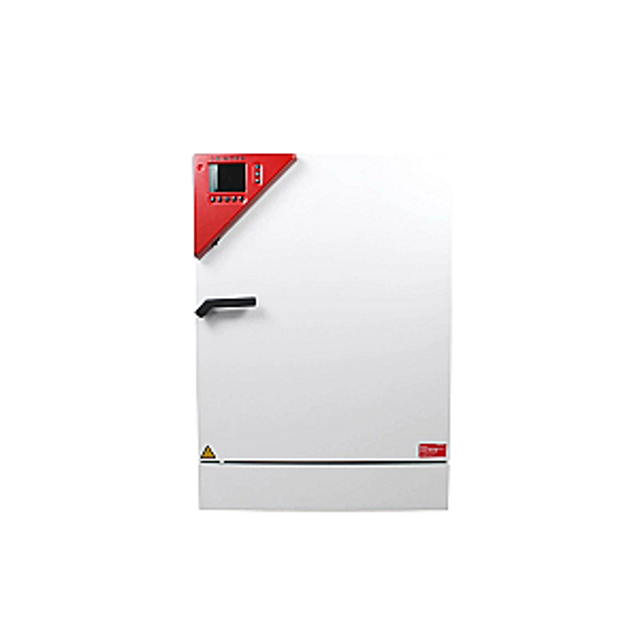

BINDER CO2 Incubator CB 150-UL

Loosen slightly the screw on the handle

Manually adjust the spring to vary the sealing force

Tighten the screw after adjustment

Is the sealing force satisfactory?

Describe any issues encountered during adjustment

Clean the area around the handle

Ensure the unit is disconnected from the power source before cleaning.

Confirm the CO2 incubator is disconnected from the mains.

Wipe the surfaces with a moistened towel.

Select the cleaning agents used for exterior surfaces and instrument panel

Select the cleaning agents used for inner chamber, shelf holders, shelf holder bars, shelves

Select the cleaning agents used for CO2 sensor

Select the cleaning agents used for silicone door gasket

Ensure the gas supply is turned off

Gather necessary tools and replacement filters

Unscrew the two parker-screws left and right above the lower housing cover

Push the lower housing cover downwards to remove it

Identify the fine gas filters to be replaced

Enter the altitude of the site over sea level into the controller MB1

Press the 'menu' button to enter the CB-Menu

Enter the user code (factory setting: 00001)

Enter the altitude value in meters [m] into the field 'Enter setpoint'

Confirm with ENTER and leave the menu with EXIT

Spray the sensor head with alcohol or wipe it clean with a soaked cloth

Was the reaction time of the disinfectant respected?

Is the CO2 sensor completely dry before reinserting?

Is the filter in the front of the sensor damaged or dirty?
