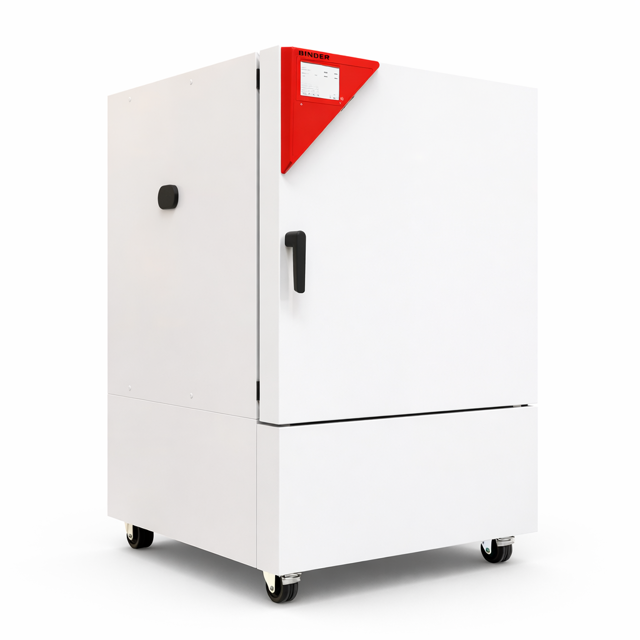

BINDER Constant Climate Chamber KBF PRO 260

Verify the calibration of the climate chamber using standardized test instructions.

Is the calibration within acceptable limits?

Adjust the climate chamber settings as per the standardized test instructions.

Confirm that the adjustments meet the DKD-Standard.

Document the calibration and adjustment results.

Ensure compliance with QM DIN EN ISO 9001 system requirements.

Turn off the chamber at the On/Off switch (H) and disconnect the power plug.

Let the chamber cool down to ambient temperature.

Ensure the chamber is disconnected from the power supply.

Wear appropriate personal protective equipment (PPE)

Ensure no food or beverages are near the cleaning area.

Wipe the surfaces with a moistened towel.

Ensure the chamber is powered off

Verify that all safety equipment is available and functional

Inspect the following components for wear and damage

Perform insulation resistance test according to EN 50678/VDE 0701

Perform protective conductor resistance test according to EN 50699/VDE 0702

Is the chamber safe to operate?

Ensure the chamber is disconnected before maintenance work.

Turn off the On/Off switch (H) and pull the power plug.

Ensure maintenance work is conducted by licensed electricians or authorized experts.

Ensure refrigeration system maintenance is conducted by qualified personnel trained according to EN 13313:2010.

Perform regular maintenance work at least once a year.

Document all work on the refrigeration system (repairs, inspections).

Conduct regular maintenance on the steam humidifier at least once a year.

Demount the safety kit with hose burst protection to check the valve by hand for function, calcification, or blockage.

Inspect the valve for calcification or blockage.

Remove calcifications using citric acid or acetic acid solutions.

Test the function and tightness of the mounted chamber.

Quickly open the water tap while there is no chamber connected. Did the valve cut off the water flux without any delay?
