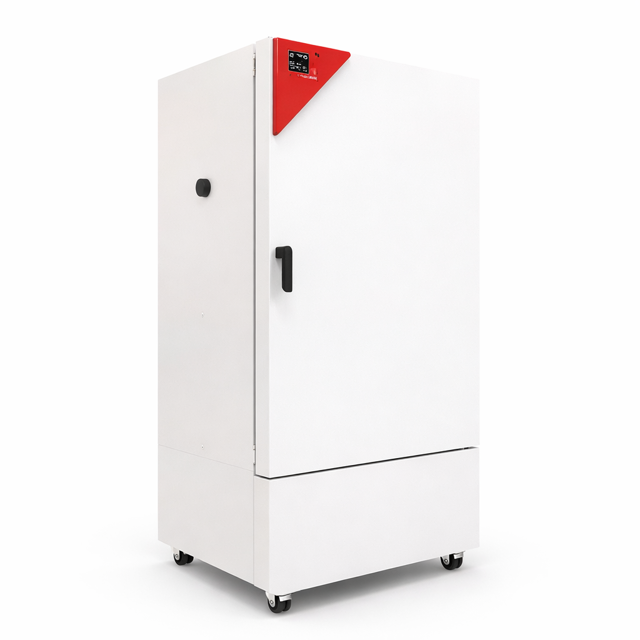

BINDER Constant Climate Chamber KBF 470

Demount the safety kit with hose burst protection

Check the valve by hand for function, calcification, or blockage

Remove calcifications using citric acid or acetic acid solutions

Test the function and tightness of the mounted chamber

Quickly open the water tap while there is no chamber connected. Did the valve cut off the water flux without any delay?

Ensure the chamber is powered off and disconnected from the main power supply.

Verify that all safety equipment is available and in good condition.

Inspect the following components for any visible damage or wear

Perform insulation resistance test according to EN 50678/VDE 0701 standards.

Conduct protective conductor resistance test as per EN 50699/VDE 0702 standards.

Check the functionality of all safety interlocks and emergency stop buttons.

Turn off the chamber at the On/Off switch (H) and disconnect the power plug.

Let the chamber cool down to ambient temperature.

Ensure the chamber is disconnected from the power supply.

Wear protective gloves and goggles.

Avoid skin contact with the neutral cleaning agent.

Keep the neutral cleaning agent away from food and beverages.

Verify the calibration of the chamber using standardized test instructions.

Is the calibration within acceptable limits?

Adjust the chamber settings according to the QM DIN EN ISO 9001 system guidelines.

Ensure all test equipment is calibrated to DKD-Standard

Documentation and Certification

Attach the calibration certificate from TÜV CERT.

Technician's signature for completion of adjustment and calibration.

Ensure the chamber is disconnected before maintenance work.

Turn off the On/Off switch (H) and pull the power plug.

Ensure maintenance work is conducted by licensed electricians or authorized experts.

Ensure refrigeration system maintenance is conducted by qualified personnel trained according to EN 13313:2010.

Perform regular maintenance work at least once a year.

Document all work on the refrigeration system (repairs, inspections).

Conduct regular maintenance on the steam humidifier at least once a year.
