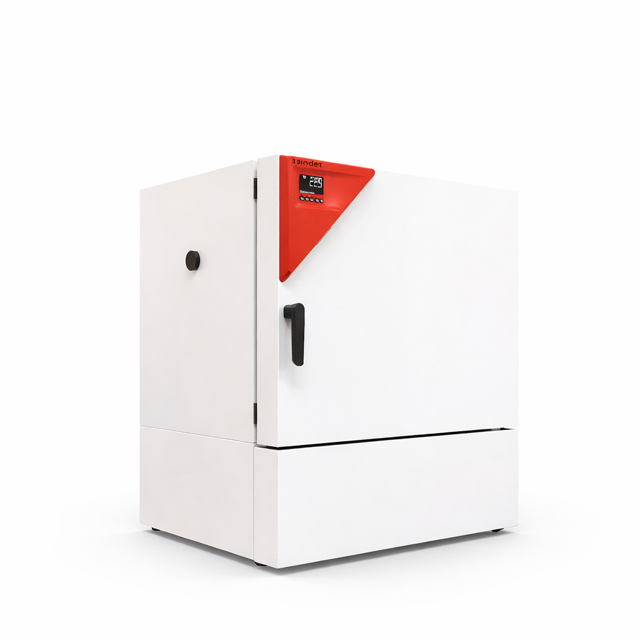

BINDER Constant Climate Chamber KBF PRO 130

Demount the safety kit with hose burst protection to check the valve by hand for function, calcification, or blockage.

Is there any calcification or blockage present?

Remove calcifications using citric acid or acetic acid solutions.

Test the function and tightness of the mounted chamber.

Quickly open the water tap while there is no chamber connected. Did the valve cut off the water flux without any delay?

Verify calibration certificate validity

Check calibration equipment compliance with DKD-Standard

Inspect chamber for physical damage

Check that all test equipment is in place

Record current chamber settings

Adjust chamber settings according to standardized test instructions

Perform calibration using standardized test instructions

Confirm all adjustments meet QM DIN EN ISO 9001 standards

Ensure the chamber is powered off before inspection

Verify that all safety equipment is in place and operational

Perform tests according to standards

Were all tests completed successfully?

Document the test results in the Service Manual

Is the chamber ready for operation?

Turn off the chamber at the On/Off switch (H) and disconnect the power plug.

Let the chamber cool down to ambient temperature.

Ensure the chamber is disconnected from the power supply.

Wear appropriate personal protective equipment (PPE)

Avoid skin contact with the neutral cleaning agent.

Do not ingest the neutral cleaning agent and keep it away from food and beverages.

Ensure the chamber is disconnected before maintenance work.

Turn off the On/Off switch (H) and pull the power plug.

Ensure maintenance work is conducted by licensed electricians or authorized experts.

Ensure refrigeration system maintenance is conducted by qualified personnel trained according to EN 13313:2010.

Perform regular maintenance work at least once a year.

Document all work on the refrigeration system (repairs, inspections).

Conduct regular maintenance on the steam humidifier at least once a year.
