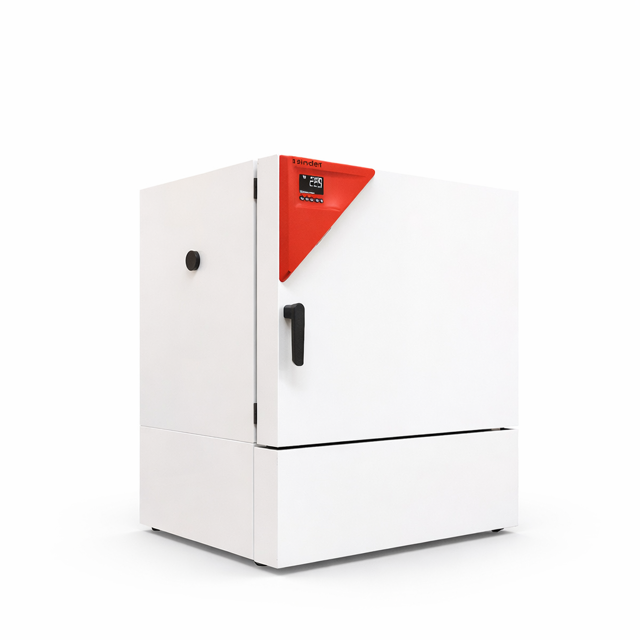

BINDER Constant Climate Chamber KBF 130-UL

Ensure the chamber is disconnected before maintenance work.

Turn off the On/Off switch (H) and pull the power plug.

Verify that maintenance work is conducted by licensed electricians or authorized experts.

Ensure refrigeration system maintenance is conducted by qualified personnel trained according to EN 13313:2010.

Perform regular maintenance work at least once a year.

Document all work on the refrigeration system (repairs, inspections).

Conduct regular maintenance on the steam humidifier at least once a year.

Demount the safety kit with hose burst protection to check the valve by hand for function, calcification, or blockage.

Inspect the valve for calcification.

Inspect the valve for blockage.

Remove calcifications using citric acid or acetic acid solutions.

Test the function of the mounted chamber by quickly opening the water tap while there is no chamber connected.

Ensure the valve cuts off the water flux without any delay.

Turn off the chamber at the On/Off switch (H) and disconnect the power plug.

Ensure the chamber has cooled down to ambient temperature.

Wear protective gloves and goggles.

Avoid skin contact with the neutral cleaning agent.

Thoroughly remove any residues of test material from the chamber.

Wipe the surfaces with a moistened towel.

Use appropriate cleaning agents for different surfaces

Verify the chamber's calibration certificate is up to date

Is the test equipment calibrated to DKD-Standard?

Perform chamber calibration using standardized test instructions

Ensure the following parts are adjusted

Was the chamber successfully adjusted to meet QM DIN EN ISO 9001 standards?

Record any deviations or issues encountered during adjustment

Ensure the chamber is powered off and disconnected from the main power supply.

Verify that all safety equipment is available and in good condition.

Inspect the following components for any visible damage or wear

Perform insulation resistance test according to EN 50678/VDE 0701 standards.

Conduct protective conductor resistance test as per EN 50699/VDE 0702 standards.

Were all tests completed successfully?
