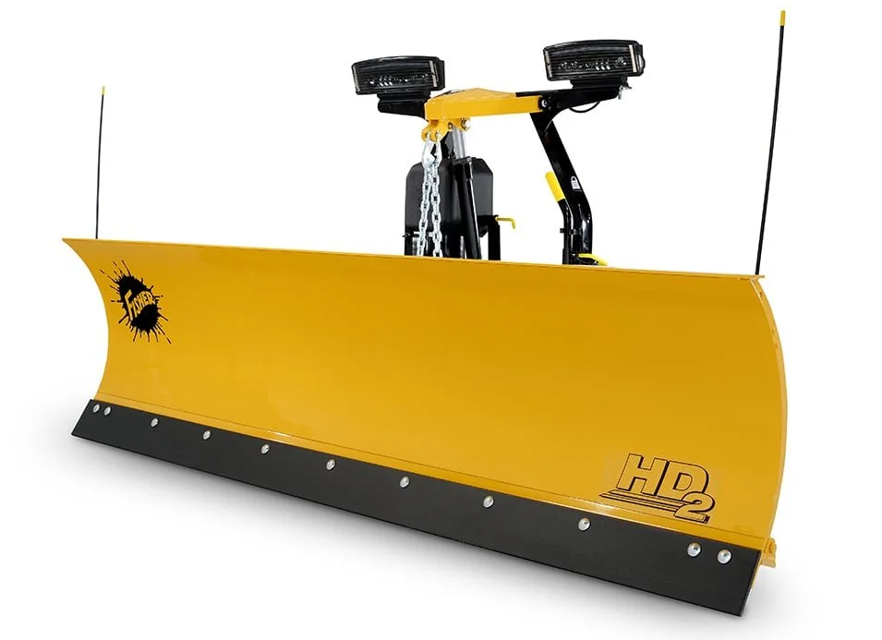

Fisher Snowplow 9' HD2

Create an account to install this asset package.

Maintenance Plans for Fisher Snowplow Model 9' HD2

Integrate maintenance plans directly into your work orders in MaintainX.

Fuse Replacement

Preparation

Ensure the vehicle ignition switch is OFF

Disconnect the electrical connections to the snowplow

Identify the Fuse

Identify the type of hydraulic unit harness system

Locate the mini fuses in the harness system

Fuse Replacement

Is the fuse blown?

Remove the blown fuse

Run this procedure

Shoe Adjustment

Safety Precautions

Ensure blade is placed on jack stands to prevent unexpected drops.

Do not store unused spacers on top of the shoe holder to avoid blade damage.

Shoe Adjustment for Different Surfaces

Select the surface type for adjustment

Blade and Shoe Adjustment

Raise the blade 1 foot off the road surface and turn the control OFF.

Place jack stands under the cutting edge from in front of the blade.

Turn the control ON and lower the blade onto the jack stands or blocking.

Run this procedure

Hose / Fitting Replacement

Safety Precautions

Lower the blade when the vehicle is parked and ensure 8' clearance from the blade.

Ensure temperature changes do not affect hydraulic pressure.

Preparation

Lower the snowplow completely and turn the control OFF.

Loosen fill plug slowly to relieve any pressure in the reservoir.

Hose and Fitting Removal

Carefully note hose routings and positions of protective hose wraps for proper reassembly.

Loosen hoses or fittings slowly to relieve any residual pressure.

Run this procedure

Blade Drop Speed Adjustment

Safety Precautions

Ensure 8' clearance from the blade when it is being raised, lowered, or angled.

Do not stand between vehicle and blade or directly in front of the blade.

Preparation

Lower the blade to the ground before making the adjustment.

Remove the hydraulic unit cover. For XtremeV™, XV2™, and XLS™ hydraulic units: Raise the top cover retainer, remove the bottom cover retainer, and remove the rear cover.

Adjustment

Adjust the quill in the valve manifold to set the blade drop speed.

Verification

Run this procedure

Preseason Snowplow Check

WARNING: Lower the blade when the vehicle is parked. Keep 8' clear of the blade. Temperature changes could change hydraulic pressure, causing the blade to drop unexpectedly, or damaging hydraulic components. Failure to do this could result in serious personal injury.

Electrical System Check

Clean all electrical connections

Tighten all electrical connections

Coat electrical connections with dielectric grease to prevent corrosion

Hydraulic System Maintenance

Check hydraulic system for leaks

Inspect hydraulic hoses for cracks or damage

Drain hydraulic system

Run this procedure
