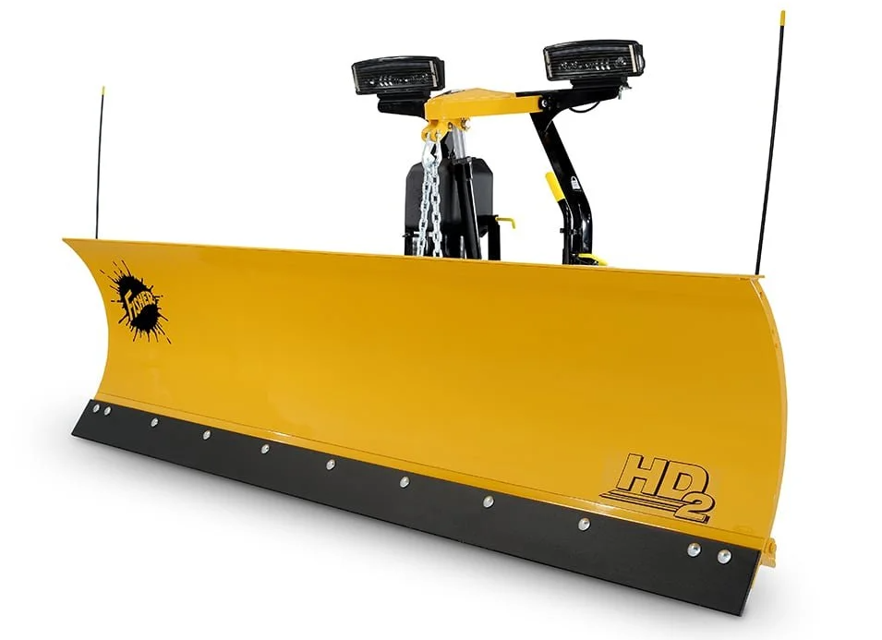

Fisher Snowplow 8' HD2

Electrical Plug Connection Check

Are all electrical plugs connected?

Do vehicle headlamps function normally when electrical plugs are disconnected?

Do snowplow headlamps function when electrical plugs are connected?

Do both vehicle and snowplow headlamps function on DRL system when electrical plugs are connected?

Is the headlamp switching operation correct?

Ensure blade is placed on jack stands to prevent unexpected drops.

Confirm no unused spacers are stored on top of the shoe holder.

Raise the blade 1 foot off the road surface.

Place jack stands under the cutting edge from in front of the blade.

Turn the control ON and lower the blade onto the jack stands or blocking.

Ensure trip springs are serviced by authorized personnel only

Coat all electrical connections with dielectric grease

Blade and Attachments Maintenance

Paint blade and attachments as needed

Ensure lift ram is fully collapsed

Apply petroleum grease to exposed chrome surfaces of the rams

Park the vehicle on a smooth, level, hard surface, such as concrete.

Lower the blade to the ground and turn the control OFF.

Leave the snowplow attached to the vehicle.

Turn the vehicle ignition to the 'OFF' position.

Initial Disconnection and Setup

Disconnect the snowplow battery cable from the vehicle battery cable.

Remove the hydraulic unit cover.

Loosen the breather/fill plug slowly to relieve any pressure in the reservoir.

Lower the blade to the ground before making the adjustment.

Remove the hydraulic unit cover.

For XtremeV™, XV2™, and XLS™ hydraulic units, perform the following:

Turn the quill to adjust drop speed.
