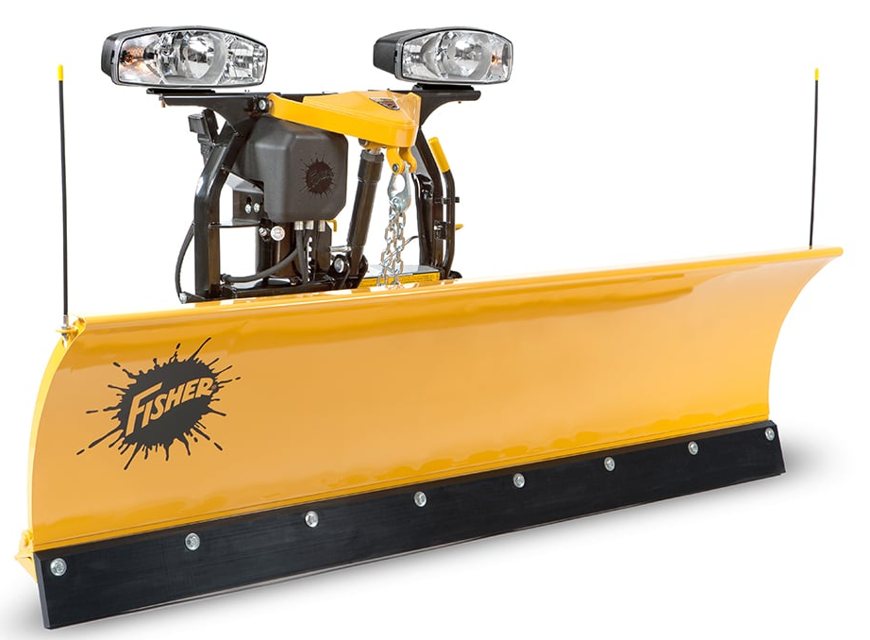

Fisher Snowplow 7'6" SD

Is the vehicle ignition switch OFF?

Verify the type and amperage rating of the fuses in the following systems

Remove the faulty fuse from the system.

Install a new fuse with the same type and amperage rating.

Is the vehicle ignition switch ON?

Check the functionality of the following systems after replacement

Ensure the snowplow is installed in the correct configuration on a properly ballasted vehicle parked on a level surface.

Place the blade wings in the scoop position on the ground with no tension on the lift chain.

Remove the rear push assembly to T-frame fasteners.

Loosen the front fasteners and allow the blade to find a level position.

Select the hole in the rear of the T-frame that is best aligned with the rear hole in the push assembly and reinstall the rear fasteners.

Tighten all four fasteners to 250 ft-lb.

Raise and lower the blade several times to ensure the cutting edge contacts the level surface across its full length.

Verify that the cutting edges remain in full contact with the ground while the wings are shifted from the scoop position to a retracted (vee) position.

Check the cutting edge wear and replace the cutting edge(s) on your XtremeV™ or XV2™ blade when worn to within 1" of the carriage bolts.

Park the vehicle on a smooth, level, hard surface, such as concrete.

Lower the blade to the ground and turn the control OFF.

Leave the snowplow attached to the vehicle.

Turn the vehicle ignition to the 'OFF' position.

Disconnect the snowplow battery cable from the vehicle battery cable.

Remove the hydraulic unit cover.

Loosen the breather/fill plug slowly to relieve any pressure in the reservoir.

Ensure blade is placed on jack stands to prevent unexpected drops.

Avoid storing unused spacers on top of the shoe holder to prevent blade damage.

Shoe Adjustment for Different Surfaces

Select the surface type for adjustment

Raise the blade 1 foot off the road surface and turn the control OFF.

Place jack stands under the cutting edge from in front of the blade.

Turn the control ON and lower the blade onto the jack stands or blocking.

Ensure 8' clearance from the blade when it is being raised, lowered, or angled.

Do not stand between vehicle and blade or directly in front of the blade.

Lower the blade to the ground before making the adjustment.

Remove the hydraulic unit cover.

For XtremeV™, XV2™, and XLS™ hydraulic units, perform the following:
